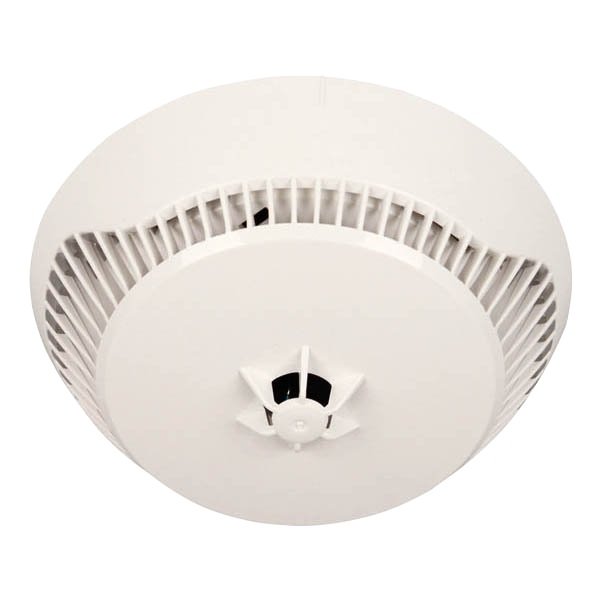

esp MAGPRO-HSD1 MAGfire Addressable combined smoke & heat detector
Image is for illustrative purposes only

esp MAGPRO-HSD1 MAGfire Addressable combined smoke & heat detector

Part: MAGPRO-HSD1
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Sensitivity selectable from the control panel -High/Normal/Middle/Low
  • Class A1R temperature sensor (according to EN54-5)
  • Day/Night mode
  • Low profile design
  • LED indication with 360° visibility
  • Certified to EN54–5/7
  • Base ordered separately see MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS

Dimensions (mm):ø103 x 42
Finish:White
Materials:ABS
Class:A1R
Available Sensitivity (Selected from CIE):High/Normal/Middle/Low
Weight (Kg):0.125
Warranty (Years):3
Operating Voltage (V DC):15 - 30
Nominal Operating Voltage (V DC):27
Consumption in quiescent state, no communication (μA):<160 (@27V DC)
Consumption in quiescent state, with communication (μA):< 200μA (@27V DC)
Consumption in alarm state, with communication (mA):6.5
Maximum Output in alarm state at terminal RI (mA):7.5 (7.5V)
Maximum Output in alarm state at terminal RI (mA):7.5 (7.5V)
Protocol Type:Custom (Closed)
Ingress Protection:IP30
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40°C)
Compatible Products:Compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
Standards:BS EN 54-5, BS EN 54-7
