esp MAGPRO-CZM MAGfire Conventional zone module with isolator

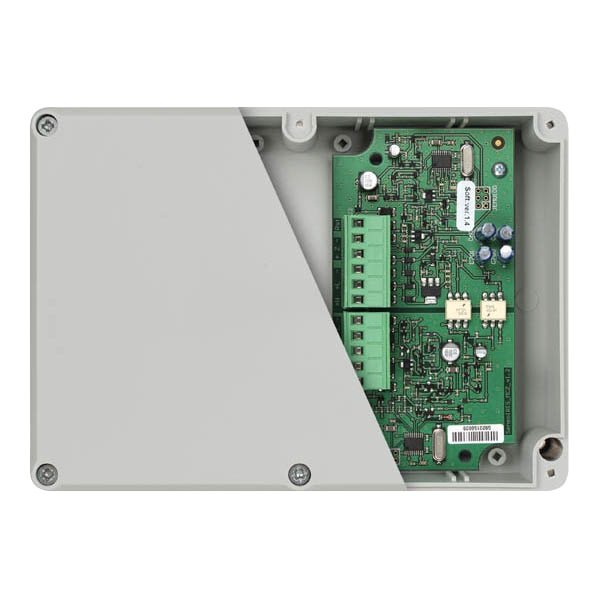

Image is for illustrative purposes only

esp MAGPRO-CZM MAGfire Conventional zone module with isolator

Part: MAGPRO-CZM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Integrate conventional detectors into an addressable system
  • Max number of detectors in one zone - 32
  • Loop powered
  • Built in isolator
  • Certified to EN54-18
  • Example applications - Integrate conventional equipment i.e. beam detectors

Dimensions (mm):126 x 176 x 57
Finish:White
Materials:ABS
Maximum Detectors Per Zone:Up to 32 Detectors
Weight (Kg):0.23
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Cable Size (mm²):0.4 - 2.0
Maximum Consumption with external power supply (μA):150 (@27V DC)
Maximum Current consumption (Loop Power Supply)(mA):5.5
Permissible Voltage Ripple (pp):3.0V (@27V DC)
Wiring Type:Analogue Addressable (MAGPRO)
Protocol Type:Custom (Closed)
Ingress Protection:IP40
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40?C)
Compatible Products:Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Standards:BS EN 54-17, BS EN 54-18
