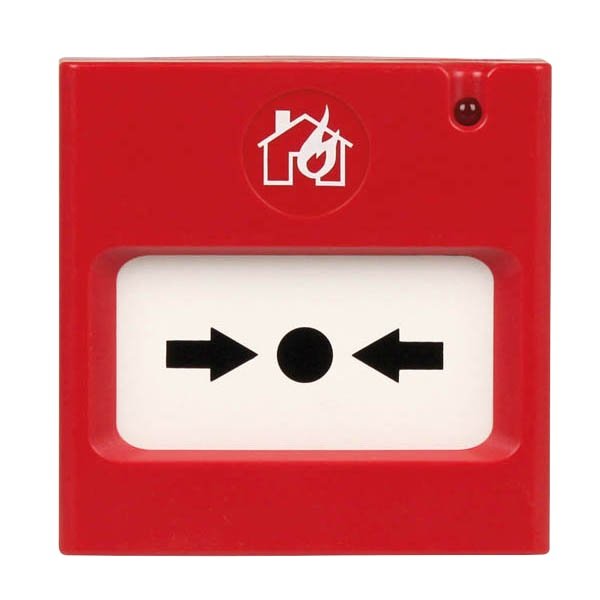

esp MAGPRO-CP MAGfire Addressable manual call point

Part: MAGPRO-CP

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

The addressable manual call point MAGPRO-CP is designed for application in addressable fire alarm systems, which support MAGPRO communication protocol.

The call point is with integrated short circuit isolation module - see the manual for details (connection diagram on page 2). MAGPRO-CP is powered on from the fire panel and can be controlled via the communication protocol.

Resettable call point
Certified to EN54-11-A
Built in isolator
IP40 Rated
Optional protective plastic cover

Dimensions (mm):	90 x 90 x 57
Finish:	Red
Mounting:	Surface or Flush (Surface Back Box Supplied)
Type of the frangible element:	A
Weight (Kg):	0.175
Warranty (Years):	3
Operating Voltage (V DC):	15 - 32
Cable Size (mm²):	0.4 - 2.0
Consumption Without Communication (μA):	125 (@27V DC)
Consumption With Communication (μA):	160 (@27V DC)
Consumption in Fire Mode (mA):	3
Wiring Type:	Analogue Addressable (MAGPRO)
Protocol Type:	Custom (Closed)
Ingress Protection:	IP40
Operating Temperature (°C):	-10 to +60
Relative Humidity Resistance (%):	93 (±3) (@40°C)
Compatible Products:	Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Standards:	BS EN 54-11, BS EN 54-17
