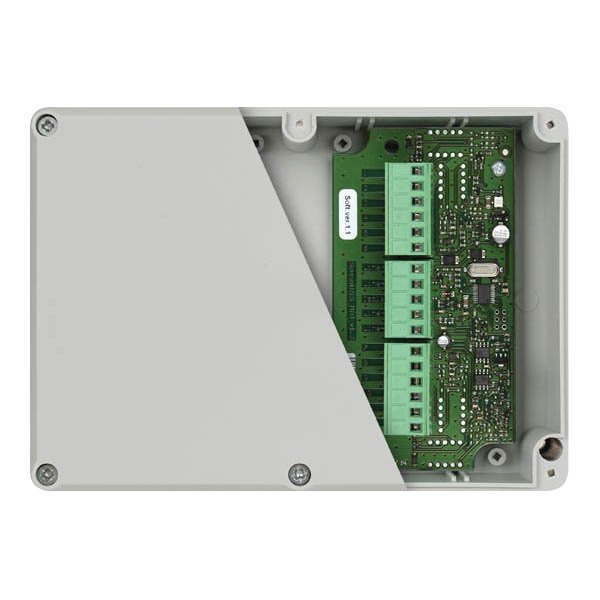

esp MAGPRO-4i0O MAGfire 4 Input Module with Isolator

Part: MAGPRO-4i0O

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

4 Monitored Inputs
Loop powered
Built in isolator
Certified to EN54-18
Example applications - Input from external equipment, extinguishing/sprinkler panel

Dimensions (mm):	126 x 176 x 57
Weight (Kg):	0.23
Warranty (Years):	3
Operating Voltage (V DC):	15 - 32
Cable Size (mm²):	0.4 - 2.0
Current consumption in STAND-BY mode (μA):	300 (@27V DC)
Nominal Current Consumption (μA):	330 (@27V DC)
Current consumption with 1 LED ON (mA):	4
Current consumption with 2 LED ON (mA):	7
Number of Inputs:	4
Type of Inputs:	Monitored
Zones:	16
Output Relay Rating:	40V DC @ 1A
Protocol Type:	Custom (Closed)
Ingress Protection:	IP40
Operating Temperature (°C):	-10 to +60
Relative Humidity Resistance (%):	93 (±3) (@40?C)
Supplied:	8 x 56k Ohm Resistors
Additional Information:	Can be used to interface 4 x 3rd party devices to create conditions such as Class Change. Supplied with 56k End of Line Resistors
Standards:	BS EN 54-17, BS EN 54-18
