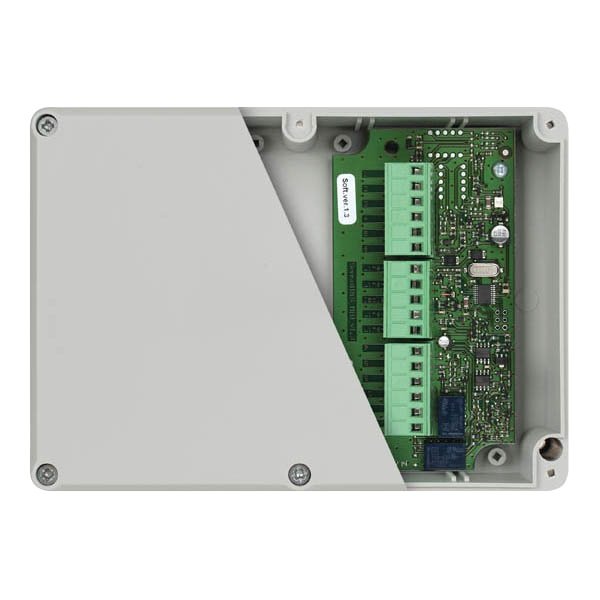

esp MAGPRO-2i2O MAGfire 2 input 2 output module with isolator
Image is for illustrative purposes only

esp MAGPRO-2i2O MAGfire 2 input 2 output module with isolator

Part: MAGPRO-2i2O
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 2 Monitored Inputs
  • 2 Outputs
  • Loop powered
  • Built in isolator
  • Certified to EN54-18
  • Example application - Link to monitoring station signalling devices

Dimensions (mm):126 x 176 x 57
Weight (Kg):0.23
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Cable Size (mm²):0.4 - 2.0
Current consumption in STAND-BY mode (μA):235 (@27V DC)
Nominal Current Consumption (μA):260 (@27V DC)
Current consumption with 1 LED ON (mA):3.5
Current consumption with 2 LED ON (mA):7
Number of Inputs:2
Type of Inputs:Monitored
Zones:16
Number of Outputs:2 (Double Pole Relays)
Output Relay Rating:40V DC @ 1A
Protocol Type:Custom (Closed)
Ingress Protection:IP40
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40?C)
Supplied:4 x 56k Ohm Resistors
Standards:BS EN 54-17, BS EN 54-18
