esp MAGPRO-1OSi MAGfire Conventional sounder module with isolator

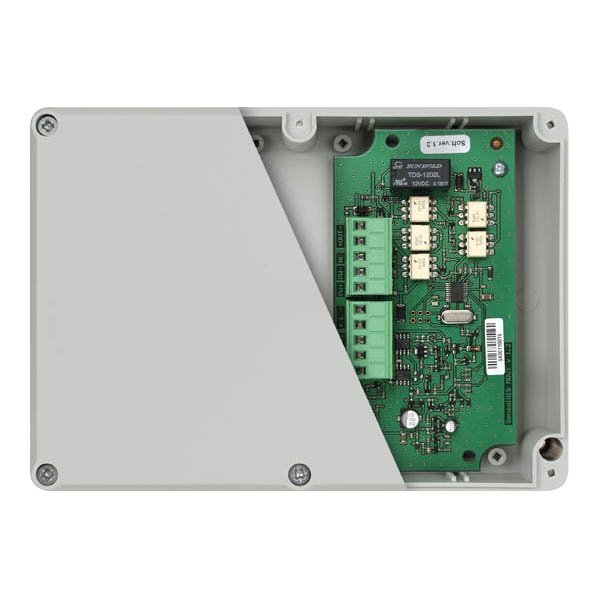

Image is for illustrative purposes only

esp MAGPRO-1OSi MAGfire Conventional sounder module with isolator

Part: MAGPRO-1OSi
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Integrate conventional sounders into an addressable system
  • Loop powered
  • Built in isolator
  • Requires 24V PSU
  • Compliant to EN54-18

Dimensions (mm):126 x 176 x 57
Weight (Kg):0.23
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Cable Size (mm²):0.4 - 2.0
Current consumption in STAND-BY mode (μA):270 (@27V DC)
Current consumption with 1 LED ON (mA):3.6
Permissible Voltage Ripple (pp):3.0V (@27V DC)
Zones:16
Type of Output:Monitored Conventional Sounder Circuit
Output Type:Monitored Conventional Sounder Circuit
Number of Outputs:1
Maximum Output Electrical Characteristics (DC):28V (@0.75A)
Protocol Type:Custom (Closed)
Ingress Protection:IP40
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40?C)
Additional Information:Requires 24V DC Supply, Not-Loop Powered
Standards:BS EN 54-17, BS EN 54-18
