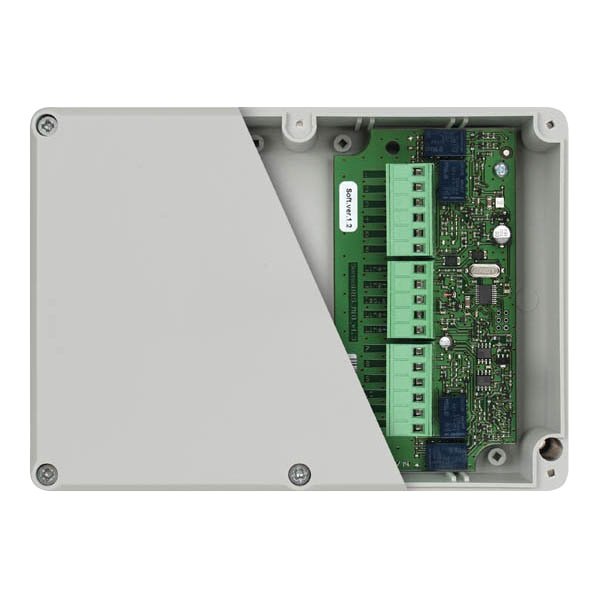

esp MAGPRO-0i4O MAGfire 4 output module with isolator
Image is for illustrative purposes only

esp MAGPRO-0i4O MAGfire 4 output module with isolator

Part: MAGPRO-0i4O
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 4 Relay outputs
  • Loop powered
  • Built in isolator
  • Certified to EN5-18
  • Example applications - Shutdown of ventilation equipment and door override

Dimensions (mm):126 x 176 x 57
Weight (Kg):0.23
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Cable Size (mm²):0.4 - 2.0
Current consumption in STAND-BY mode (μA):175 (@27V DC)
Nominal Current Consumption (μA):200 (@27V DC)
Current consumption with 1 LED ON (mA):4
Number of Outputs:4 (Double Pole Relays)
Output Relay Rating:40V DC @ 1A
Protocol Type:Custom (Closed)
Ingress Protection:IP40
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40?C)
Compatible Products:Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Additional Information:Used to switch equipment in conditions such as “Common Fire”
Standards:BS EN 54-17, BS EN 54-18
