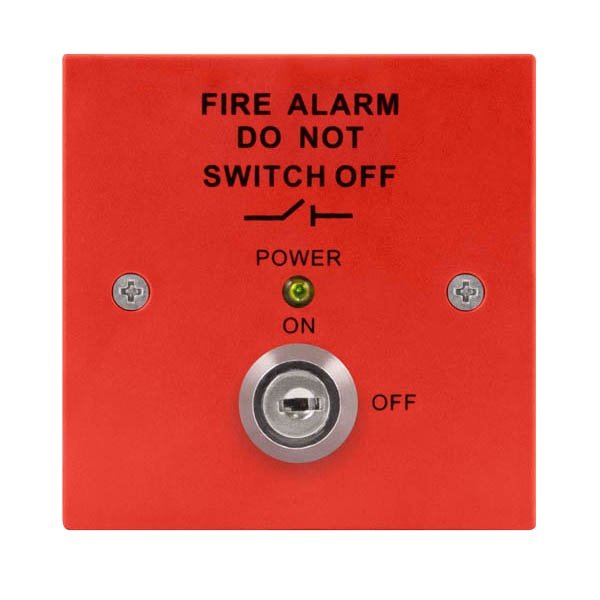

esp MAGISORP MAGfire Fire isolation switch (red)
Image is for illustrative purposes only

esp MAGISORP MAGfire Fire isolation switch (red)

Part: MAGISORP
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Complies with BS5839 Part1
  • Isolates the mains voltage supply to the fire system
  • Enables safety for maintenance and offers protection against tamper
  • Both the live and neutral supply is switched

Dimensions (mm):86.5 x 86.5
Finish:Red
Materials:ABS
Mounting:Surface or Flush (Surface Back Box Supplied)
Pole Type:Double Pole
Switching Type:Double Pole
Warranty (Years):3
Supply Voltage (V AC):240
Maximum Cable Size (mm²):2.5
Power Indicator:Green LED
Switch type:Key
Output Relay Rating:240V AC @ 6Amps
