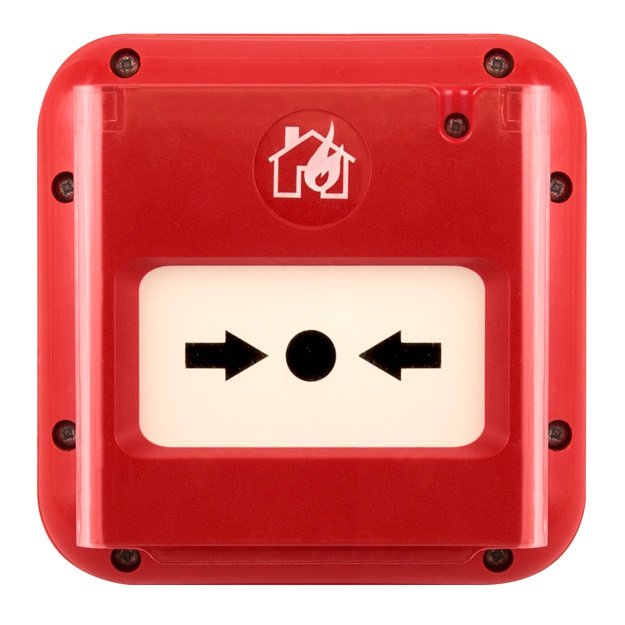

esp MAGfire Addressable manual call point, IP67 rated
Image is for illustrative purposes only

esp MAGPRO-CPIP67 MAGfire Addressable manual call point, IP67 rated

Part: MAGPRO-CPIP67
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Resettable call point
  • Certified to EN54-11-A
  • Built in isolator
  • IP67 Rated

Dimensions (mm):114 x 114 x 80
Finish:Red
Mounting:Surface Only
Type of the frangible element:A
Weight (Kg):0.262
Warranty (Years):3
Operating Voltage (V DC):15 - 32
Cable Size (mm²):0.4 - 2.0
Consumption Without Communication (μA):125 (@27V DC)
Consumption With Communication (μA):160 (@27V DC)
Consumption in Fire Mode (mA):3
Wiring Type:Analogue Addressable (MAGPRO)
Protocol Type:Custom (Closed)
Ingress Protection:IP67
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40°C)
Compatible Products:Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Standards:BS EN 54-11, BS EN 54-17, BS EN 60529
