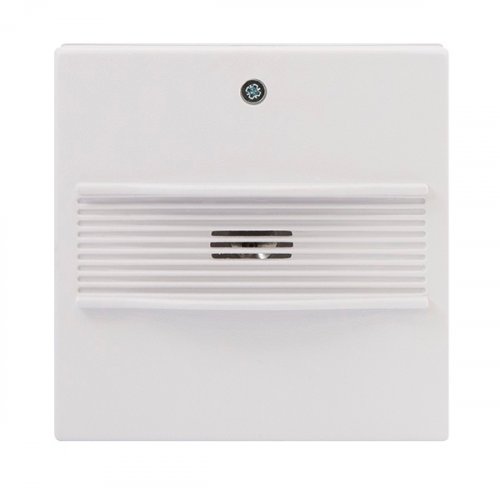

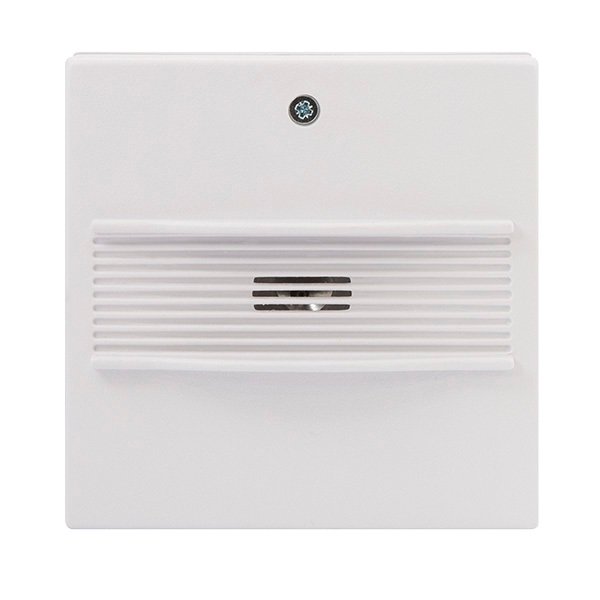

esp MAGDUOSWSQ Wall sounder for MAGDUO (white)
Image is for illustrative purposes only

esp MAGDUOSWSQ Wall sounder for MAGDUO (white)

Part: MAGDUOSWSQ
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Wall mount red sounder
  • Volume level adjustment
  • Built-in End of Line function
  • Device base included

Dimensions (mm):89 x 89 x 62 (Surface); 89 x 89 x 34 (Flush)
Volume Modes:2 (Low & High)
Device Loading Units (DLU’s) - Low:13
Warranty (Years):3
Operating Voltage (Mains Powered Panel)(V DC):25.5 - 35
Operating Voltage (Battery Powered Panel)(V DC):22 - 26
Maximum Cable Size (mm²):1.5
Current Consumption (Quiescent)(mA):0.185
Current Consumption in alarm state (mA):High 14.5, Low 12.6
Maximum Current Consumption:14.5mA
Wiring Type:2-Wire Conventional
Sound Output @ 1m (Low) (db):65+
Sound Output @ 1m (High) (db):85+
Ingress Protection:IP21C
Operating Temperature (°C):-10 to +50
Compatible Products:Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Standards:BS EN 54-3
