esp MAGDUOSSLP Sounder strobe for MAGDUO (low profile)

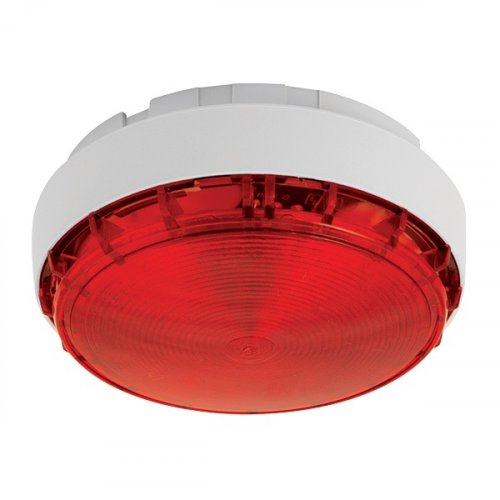

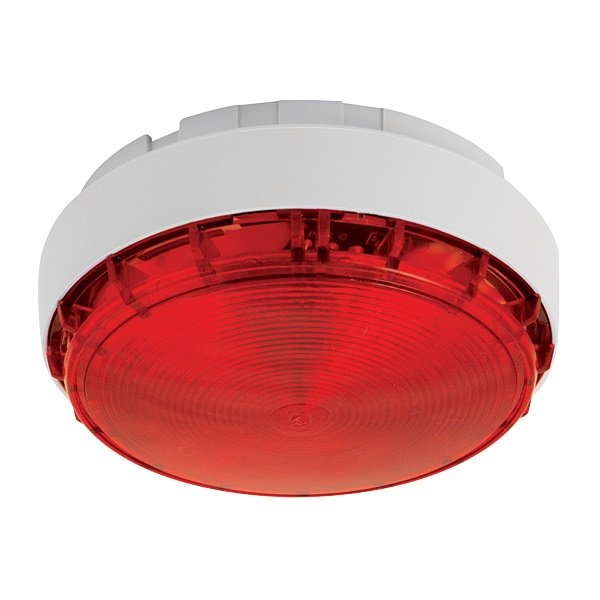

Image is for illustrative purposes only

esp MAGDUOSSLP Sounder strobe for MAGDUO (low profile)

Part: MAGDUOSSLP
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Complete with 3 sounder modes and LED strobe
  • Volume level adjustment
  • Built-in End of Line function
  • Low profile design
  • Device wiring base included

Dimensions (mm):ø105 x 45
Volume Modes:2 (Low & High)
Device Loading Units (DLU’s) - Low:33
Warranty (Years):3
Operating Voltage (Mains Powered Panel)(V DC):25.5 - 35
Operating Voltage (Battery Powered Panel)(V DC):24 - 26
Maximum Cable Size (mm²):1.5
Current Consumption (Quiescent)(mA):0.22
Current Consumption in alarm state (mA):High 23.5, Low 15
Maximum Current Consumption:23.5mA
Wiring Type:2-Wire Conventional
Sound Output @ 1m (Low) (db):65+
Sound Output @ 1m (High) (db):90+
Ingress Protection:IP21C
Operating Temperature (°C):-10 to +50
Compatible Products:Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Standards:BS EN 54-3
