esp MAGDUOSIP55 Strobe for MAGDUO

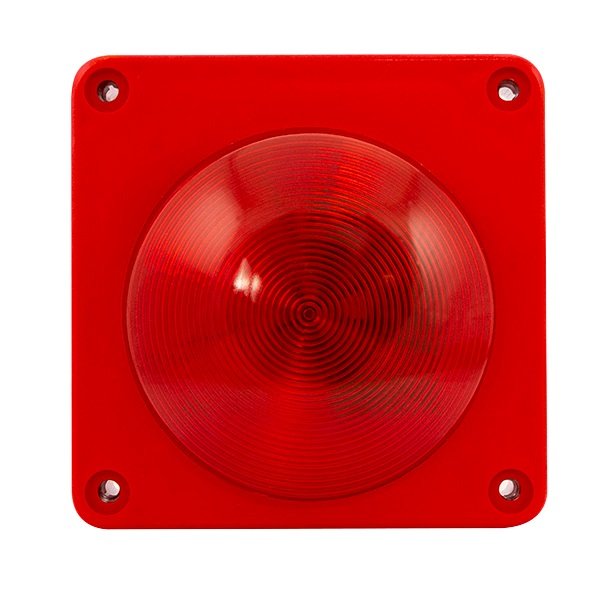

Image is for illustrative purposes only

esp MAGDUOSIP55 Strobe for MAGDUO

Part: MAGDUOSIP55
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • IP55 Ingress protection
  • LED strobe
  • Built-in End of Line function
  • Device base included

Dimensions (mm):115 x 115 x 70
Flash period (sec):1
Flash Duration (ms):15
Device Loading Units (DLU’s):33
Warranty (Years):3
Operating Voltage (Mains Powered Panel)(V DC):25.5 - 35
Operating Voltage (Battery Powered Panel)(V DC):26
Maximum Cable Size (mm²):1.5
Current Consumption (Quiescent)(mA):0.42
Maximum Current Consumption:5mA
Wiring Type:2-Wire Conventional
Ingress Protection:IP55
Operating Temperature (°C):-10 to +50
Compatible Products:Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Standards:BS EN 54-3
