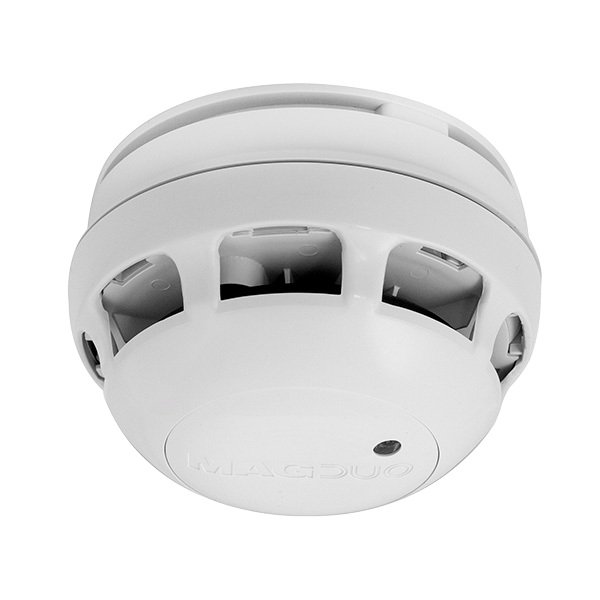

esp MAGDUOSHDS FlexiPoint detector for fire detection with sounder
Image is for illustrative purposes only

esp MAGDUOSHDS FlexiPoint detector for fire detection with sounder

Part: MAGDUOSHDS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 7 modes of fire detection including combined smoke/heat
  • Complete with 3 sounder modes
  • Built-in End of Line function
  • Self-calibration every 6 hours
  • Continuous dust contamination monitoring
  • Device wiring base included

Dimensions (mm):ø107 x 75
Device Loading Units (DLU’s) - Low:6.5
Device Loading Units (DLU’s) - High:8
Warranty (Years):3
Operating Voltage (V DC):18 - 32
Maximum Cable Size (mm²):1.5
Current Consumption (Quiescent)(mA):0.1
Current Consumption in alarm state (mA):High 8, Low 2.5, Off 0.15
Maximum Current Consumption:23.8mA
Alarm Current @ 24V (mA):15.5
Wiring Type:2-Wire Conventional
Sound Output @ 1m (Low) (db):70+
Sound Output @ 1m (High) (db):90+
Ingress Protection:IP21C
Operating Temperature (°C):-10 to +50
Compatible Products:Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Standards:BS EN 54-5, BS EN 54-7
