esp MAGDUOREPB Conventional repeater panel for MAGDUO (black)
Image is for illustrative purposes only

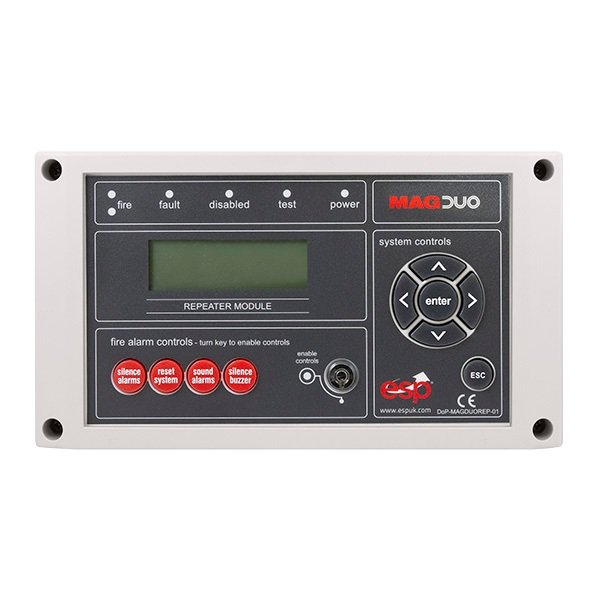

esp MAGDUOREP Conventional repeater panel for MAGDUO (grey)

Part: MAGDUOREP
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Compatible with MAGDUO 4 or 8 zones control panels only
  • Reports MAGDUO panel events to a remote location
  • Capable of performing system controls (i.e. Silence Alarms, Reset, Sound Alarms & Silence Buzzer)
  • Maximum of 8 repeater panels can be connected to a single control panel

Power:
  Power:24vDC (Range 21-31vDC)
Consumption:
  Quiescent (Back Light Off):24vDC @ 16mA
  Maximum (Back Light and Controls Enabled):24vDC @ 50mA
Input:
  Communication:RS-485
  Max. Length Between Panels:500 Meters
Output:
  Communication:RS-485
  Max. Length Between Panels:500 Meters
Technical spec:
  Max. Number per Panel:8
Environment:
  Working Temperature:5°C to 50°C
  Weight:0.65 Kg
  Dimensions:250 x 140 x 85 mm
