esp MAGDUOCPIP65 Call point for MAGDUO, IP65

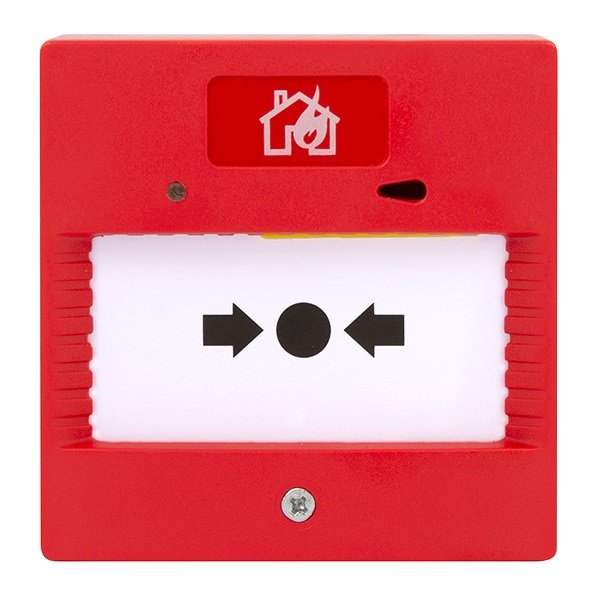

Image is for illustrative purposes only

esp MAGDUOCPIP65 Call point for MAGDUO, IP65

Part: MAGDUOCPIP65
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Resettable manual call point
  • Built-in End of Line function
  • Device base included
  • IP65 Ingress protection

Dimensions (mm):87 x 87 x 53 (Surface), 87 x 87 x 25 (Flush)
Device Loading Units (DLU’s):16
Type of the frangible element:A
Warranty (Years):3
Operating Voltage (Mains Powered Panel)(V DC):25.5 - 35
Operating Voltage (Battery Powered Panel)(V DC):29 - 26
Maximum Cable Size (mm²):1.5
LED Operation Colour:Red
Maximum Current Consumption:16.5mA
Wiring Type:2-Wire Conventional
Ingress Protection:IP65
Operating Temperature (°C):-10 to +50
Standards:BS EN 54-11
