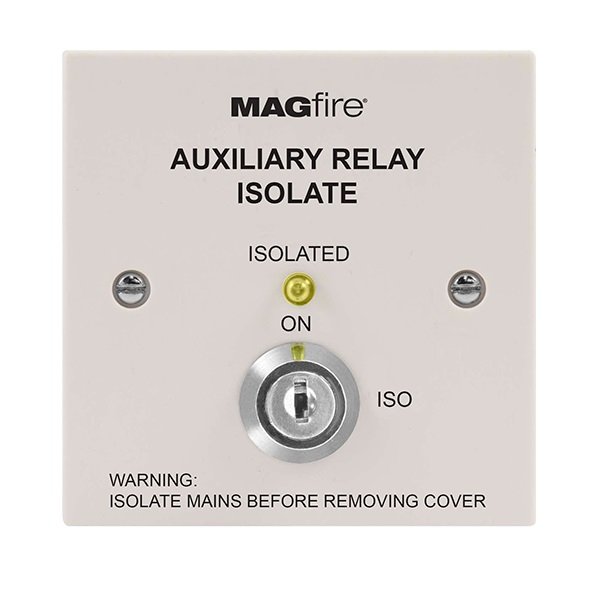

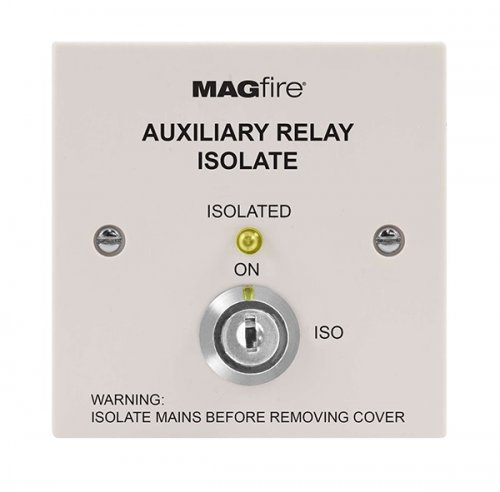

esp MAGAUXISOWP MAGfire Auxiliary isolation switch (White)

Part: MAGAUXISOWP

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

This product is designed to provide two sets of 8 amp clean changeover contacts, either from a switch -ve trigger input or via the isolate keyswitch.

Suitable for mains switching up to 8 amp
Secure key switch enables safety for maintenance and offers protection against tamper
External trigger option
Programmable internal buzzer for activation
Clear operation LED indication
Surface or recess mount

Dimensions (mm):	86 x 86
Finish:	White
Materials:	ABS
Mounting:	Surface or Flush (Surface Back Box Supplied)
Warranty (Years):	3
Operating Voltage (V DC):	24
Maximum Cable Size (mm²):	2.5
Power Indicator:	Green LED
Switch type:	Key
Relay Types:	Double Pole Double Throw (DPDT)
Output Relay Rating:	240V AC @ 8Amps each
