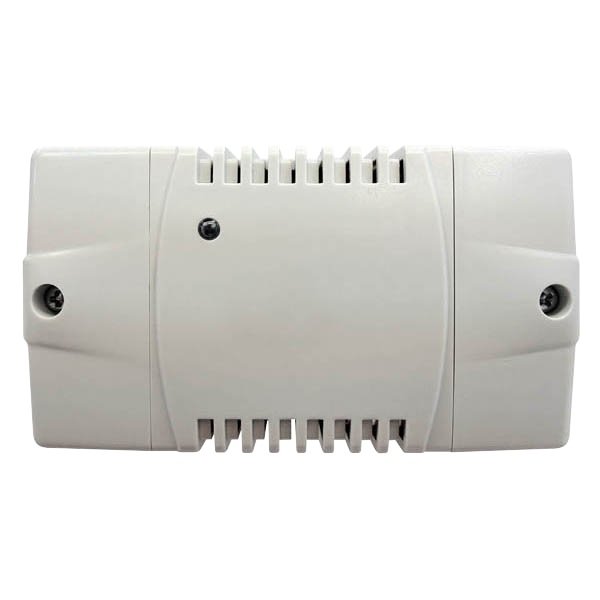

esp EVBPSBB aperta boxed power supply

Part: EVBPSBB

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Dimensions (mm):	129 x 73 x 50
Materials:	ABS
Mounting:	Surface
Warranty (Years):	3
Ingress Protection:	IP20
Operating Temperature (°C):	0 to +50
Supply Voltage (V AC):	100 - 230
Input Type:	Coil (to activate lock output switch over)
Activation Type:	Energise with a Normally Open Clean contact
Output Type:	Configurable Normally Open or Normally Closed
Number of Outputs:	2 (1 x Switched & 1 x Constant)
Constant Output:	12V @ 1A
Lock output:	12V DC @ 1.5A
