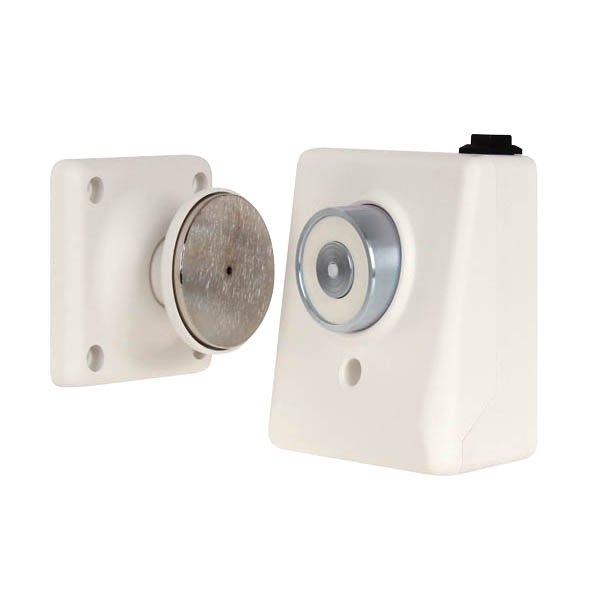

esp DR916-24 MAGfire Door holder, 24VDC
Image is for illustrative purposes only

esp DR916-24 MAGfire Door holder, 24VDC

Part: DR916-24
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 200N holding force
  • 24 V Dc supply
  • Zero Residual Force
  • Approved to EN 1155

Dimensions (mm):95 x 87 x 46 (Door Retainer)
Materials:Fire Resistant ABS
Keeper Plate Dimensions (mm):70 x 70 x 45
Maximum Holding Force (N):200
Weight (Kg):0.36
Warranty (Years):3
Supply Voltage (V DC):24
Maximum Cable Size (mm²):2.5
Maximum Current Consumption:50mA
Ingress Protection:IP51
Operating Temperature (°C):0 to +40
Standards:BS EN 1155
