esp CSD2 MAGfire Combined optical smoke & fixed heat detector

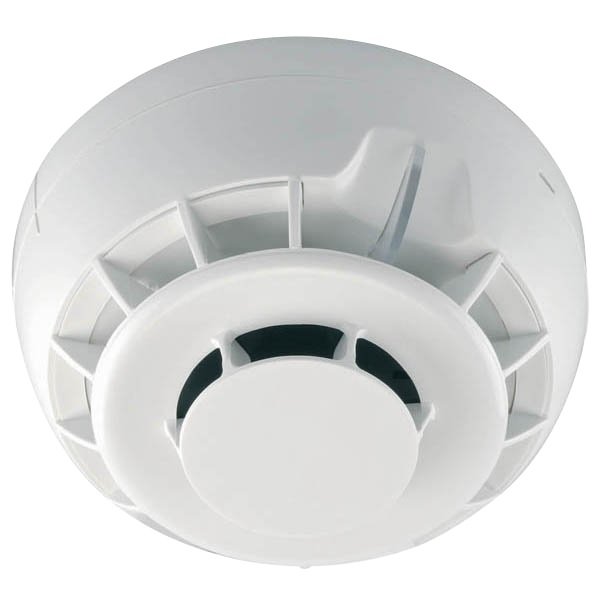

Image is for illustrative purposes only

esp CSD2 MAGfire Combined optical smoke & fixed heat detector

Part: CSD2
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Multi criteria (Optical-smoke and Heat) detector
  • Auto compensation
  • Digital processing algorithm
  • LED indication with 360° visibility
  • Sensor status indication on every 8 seconds
  • Rubber gasket ring for increased protection of the smoke chamber

Dimensions (mm):ø102 x 48 (Including Base)
Test Facility:Simulated Smoke/ Heat
Class:A1R
Weight (Kg):0.17 (Including Base)
Warranty (Years):3
Operating Voltage (V DC):9 - 30
Cable Size (mm²):0.4 - 2.0 TWIN
Alarm Current @ 24V (mA):49
Standby Current @ 24v (μA):<60
Wiring Type:4-Wire Conventional
Ingress Protection:IP30
Operating Temperature (°C):-10 to +60
Relative Humidity Resistance (%):93 (±3) (@40°C)
Standards:BS EN 54-5, BS EN 54-7
