CLICK WA102
Image is for illustrative purposes only

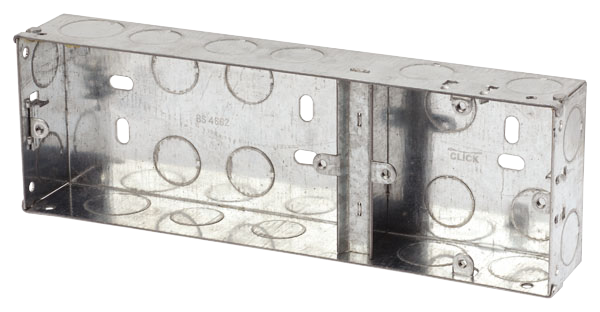

CLICK WA102 ESSENTIALS 1 + 2 35mm Deep Dual Accessory Box

Part: WA102
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

16 x 20mmŲ, 2 x 25mmŲ, 1 x 20mmŲ (between) knockouts. Earth terminal provided.

  • 16 x 20mmŲ, 2 x 25mmŲ, 1 x 20mmŲ (between) knockouts
  • Earth terminal provided

Mounting method :Flush mounted
Colour :Other
Width :220mm
Model :Other
Halogen free :No
Shape :Rectangular
Surface protection :Pre-galvanised
Equipped with :None
Construction type :Flush mounted box
Internal depth :35mm
Couplable :No
Sealable :No
Circuit integrity :None
Number of entry points :18
Device mounting method :Screwing
Cover attachment :Screwed
Luminaire hook mounting :No
With screening :No
With screws :No
Wind proof :No
Depth :35mm
Suitable for cable outer diameter :1 to 15mm
Degree of protection (IP rating) :IP00
For tube diameter :20/25 mm
Entry point on rear :No
Pipe locking :No
Special application :None
Number of poles of the clamp :0
Nozzle :None
Provided with revolving ring :No
Housing feed-through by seal membrane :No
Housing feed-through by nozzle :No
Housing feed-through by step membrane :No
Pipe locking optional :No
Number of included spouts :0
Cover model :None
Housing feed-through by break-out opening :No
Transparent cover :No
Suitable for wall/board thickness :5 to 35mm
