CLICK WA093
Image is for illustrative purposes only

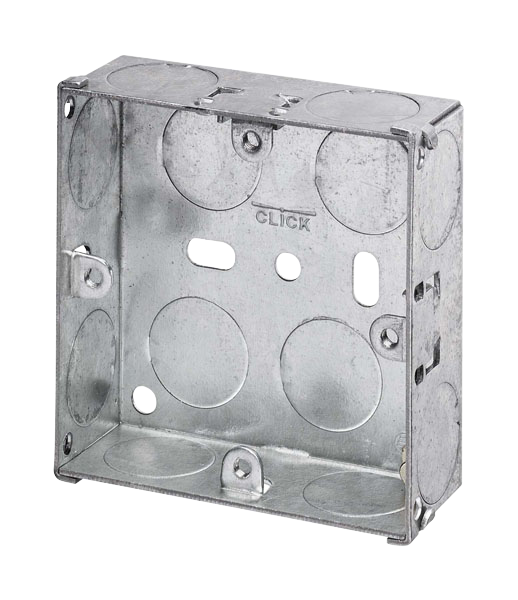

CLICK WA093 ESSENTIALS 1 Gang 25mm Deep Galvanised Steel K.O. Box

Part: WA093
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

12 x 20mmØ knockouts. Earth terminal provided.

  • 12 x 20mmØ knockouts
  • Earth terminal provided

Mounting method :Flush mounted
Colour :Other
Width :70mm
Model :Single
Halogen free :No
Shape :Rectangular
Surface protection :Pre-galvanised
Equipped with :None
Construction type :Flush mounted box
Internal depth :25mm
Couplable :No
Sealable :No
Circuit integrity :None
Number of entry points :12
Device mounting method :Screwing
Cover attachment :Screwed
Luminaire hook mounting :No
With screening :No
With screws :No
Wind proof :No
Depth :25mm
Suitable for cable outer diameter :1 to 15mm
Degree of protection (IP rating) :IP00
For tube diameter :20 mm
Entry point on rear :No
Pipe locking :No
Special application :None
Number of poles of the clamp :0
Nozzle :None
Provided with revolving ring :No
Housing feed-through by seal membrane :No
Housing feed-through by nozzle :No
Housing feed-through by step membrane :No
Pipe locking optional :No
Number of included spouts :0
Cover model :None
Housing feed-through by break-out opening :No
Transparent cover :No
Suitable for wall/board thickness :5 to 25mm
