CLICK PRW050 POLAR 13A Fused Connection Unit
Image is for illustrative purposes only

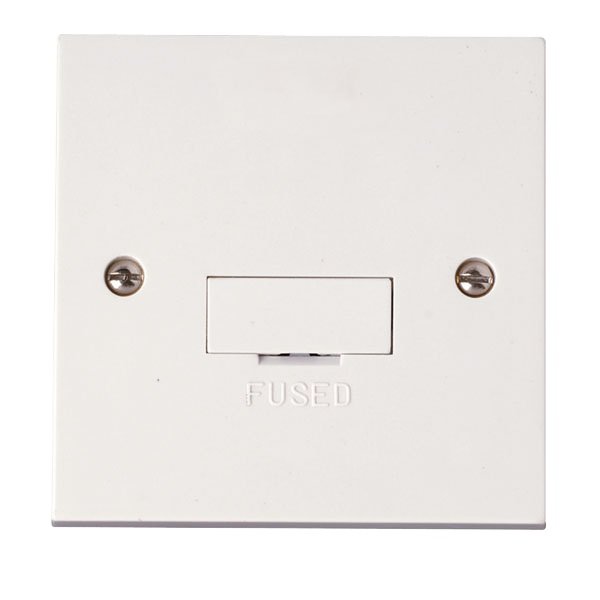

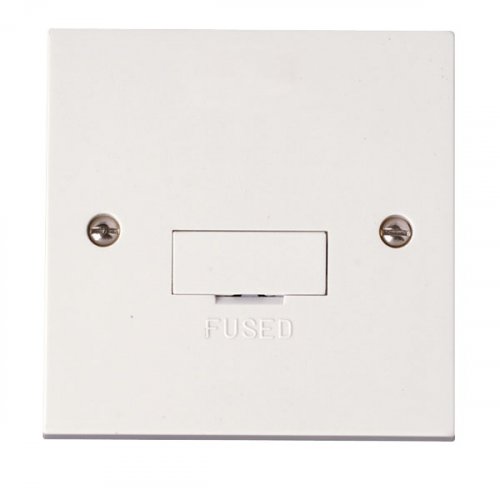

CLICK PRW050 POLAR 13A Fused Connection Unit with optional flex outlet, Polar white

Part: PRW050
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • All screw terminals accessible from the top
  • Bottom flex outlet option available
  • Moulded square edge polar white plate
  • Antiviral & Antibacterial Certified

Plate Dimensions (mm):86 (W) x 86 (H) x 11 (D)
Plate Fixing Centres - Horizontal (mm):60.3
Style:Square Edge
Finish:Polar White
Materials:Front Plate & Fuse Drawer- Urea
Anti Microbial Certified:Yes
Rated Voltage (V~) (Ue):250
Frequency (Hz):50
Resistive Load Rating (A):13
Fuse Fitted Rating & Type:13A (BS 1362)
Termination Type:Screw
Terminal Size (mm):Ø5
Capacity - Solid (mm²):3 x 2.5 or 2 x 4
Switched:No
Twin Earth Terminals:Yes
Product Marking:Fused
Flex Outlet Available:Yes
Flex Outlet Location:Bottom of Plate
Flex Outlet Dimension (mm):Ø10
Minimum Back Box Depth (mm):25
Ingress Protection:IP20
Operational Temperature (°C):-5 to +40
