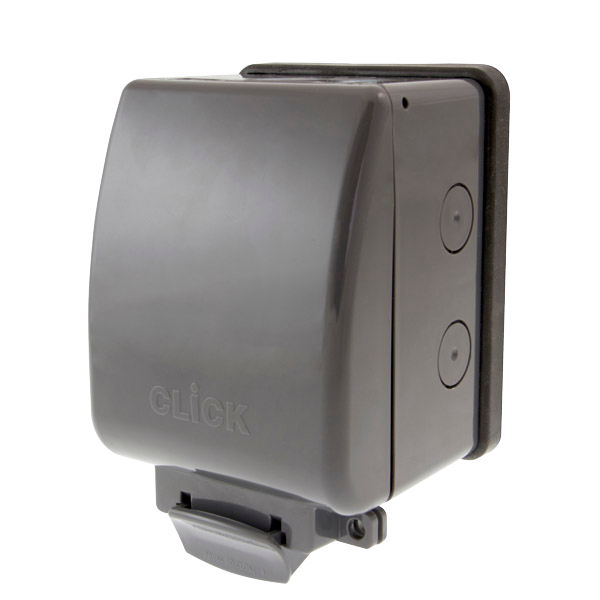

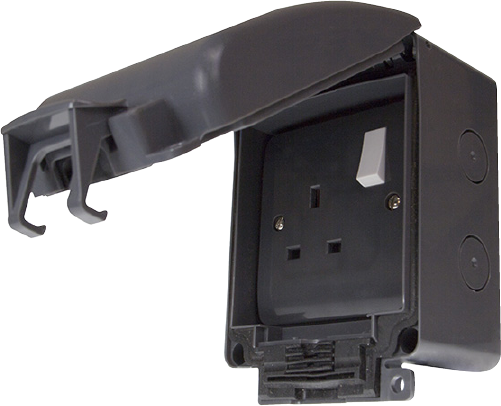

CLICK OA035AG ESSENTIALS Anthracite Grey 1 Gang 13A DP IP66 Weatherproof Switched Socket Unit

Part: OA035AG
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • IP66-rated weatherproof socket and switch enclosures offer users a single fix installation - with the whole of the back box fixing to the wall to accommodate the socket or modules.

  • Multiple knock-outs on each side (20mm) allow for entry from all angles, and a flexible rubber base with rear entry gasket provides extra weatherproof protection, as well as allowing for mounting on most types of uneven surfaces.

Nominal current :13A
Nominal voltage :250V
Mounting method :Surface mounted
Colour :Anthracite
Model :British Standard
Halogen free :No
Number of units/gangs :1
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :No
Number of phases :1
With enhanced contact protection :No
Frequency :50Hz
With on/off switch :No
Label space/information surface :No
Eject-mechanism :No
Material qualifier :Urea formaldehyde
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Special power supply :No special power supply
Insulated mounting :No
Material :Plastic
Type of fastening :Mounting with screw
Imprint/indication :None
Transparent :No
Surface finish :Glossy
With miniature fuse :No
With loop through function :No
Degree of protection (IP rating) :IP66
Width of device :87mm
Height of device :158mm
Depth of device :90mm
Number of switchable socket outlets :1
With function lighting :No
With orientation lighting :No
IFTTT support available :No
Number of active contacts (rectangular) :3
Minimum depth of back box :0mm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Metallic :No
Antibacterial treatment :No
For heavy conditions (in accordance with VDE) :No
