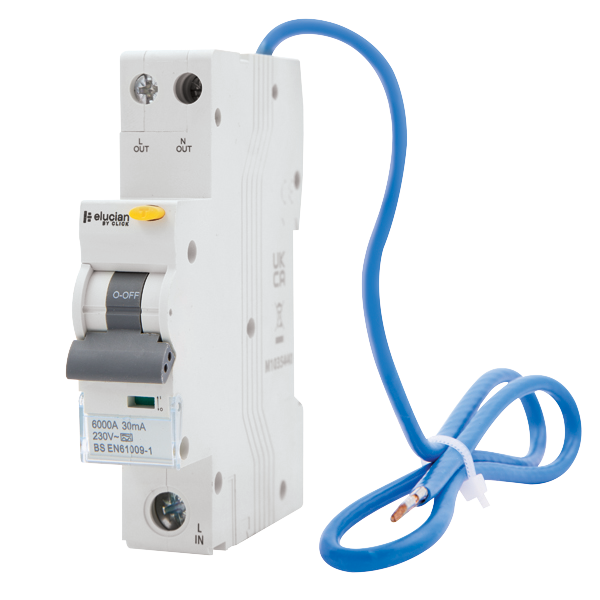

CLICK CU1RCBO32B ELUCIAN 1 Pole True 6kA B Curve 32A 30mA RCBO Light Grey (RAL 9035)

Part: CU1RCBO32B
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Single Pole + Neutral True 6kA. B Curve with 30mA trip current, Type A, large terminal capacity & lockable switch (with compatible kit).

  • Single Pole + Neutral
  • True 6kA
  • B Curve
  • 30mA Trip Current
  • Type A
  • Large Terminal Capacity
  • Lockable switch (with compatible kit)

Voltage type :AC
Recess depth :70mm
Rated current :32A
Rated voltage :240V
Tripping characteristic (type/curve) :B
Leakage current type :A
Width in number of modular spacings :1
Frequency :50/60 Hz
Degree of protection (IP rating) :IP20
Number of protected poles :1
Concurrently switching N-neutral :No
Rated short-circuit breaking capacity IEC 60947-2 :6kA
Connectable conductor cross section solid-core :2.5 to 25mm2
Connectable conductor cross section multi-wired :1 to 25mm2
With interlocking device :No
Ambient temperature during operating :-25 to 40°C
Flush-mounted installation :No
Number of poles (total) :2
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :4kV
Rated short-circuit breaking capacity Icn according to EN 61009-1 :6kA
Disconnection characteristic :Undelayed
Rated short-circuit breaking capacity according to EN 61009 :6kA
