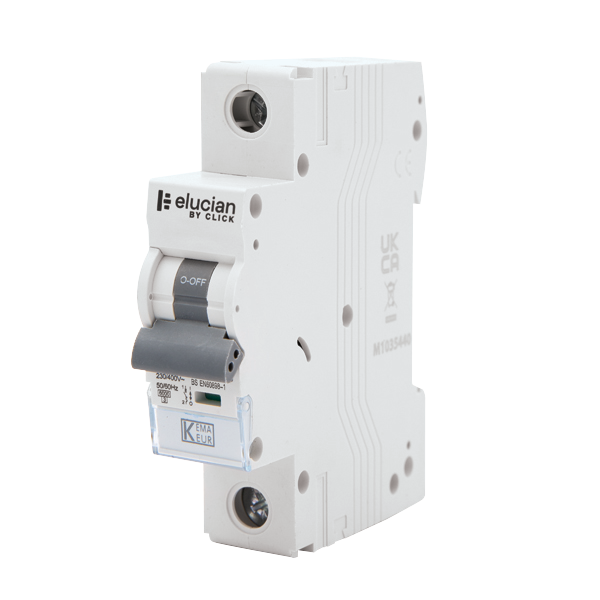

CLICK CU1MCB6B ELUCIAN 1 Pole True 6kA B Curve 6A MCB Light Grey (RAL 9035)

Part: CU1MCB6B
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Single Pole True 6kA. B Curve with thermal / magnetic trip release, large terminal capacity & lockable switch (with compatible kit).

  • Single Pole
  • True 6kA
  • B Curve
  • Thermal / Magnetic Trip Release
  • Large Terminal Capacity
  • Lockable switch (with compatible kit)

Voltage type :AC
Recess depth :70mm
Rated current :6A
Rated voltage :230V
Frequency :50 to 60Hz
Tripping characteristic (type/curve) :B
Rated insulation voltage Ui :500V
Width in number of modular spacings :1
Explosion-proof :No
Degree of protection (IP rating) :IP20
Number of protected poles :1
Concurrently switching N-neutral :No
Connectable conductor cross section solid-core :2.5 to 25mm2
Connectable conductor cross section multi-wired :1 to 16mm2
Ambient temperature during operating :-5 to 40°C
Flush-mounted installation :No
Additional equipment possible :No
Number of poles (total) :1
Rated short-circuit breaking capacity Icn EN 60898 at 400 V :6kA
Rated short-circuit breaking capacity Icn EN 60898 at 230 V :6kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V :6kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V :6kA
Rated impulse-withstand voltage (Uimp) :4kV
