CLICK CT105C
Image is for illustrative purposes only

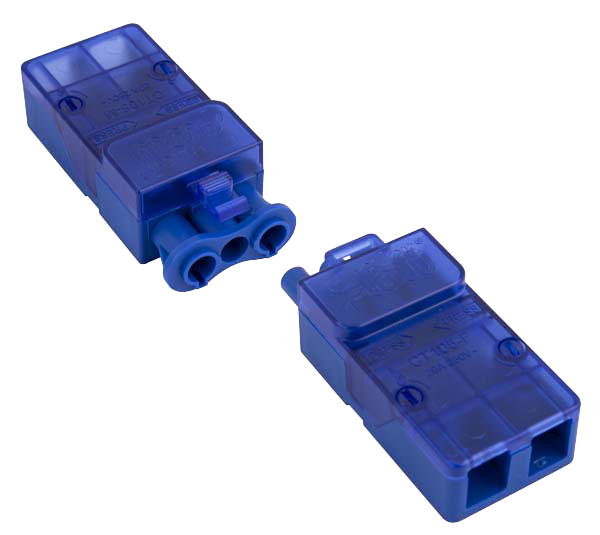

CLICK CT105C FLOW Blue 250V~ 20A 3 Pole Complete Push Fit Connector

Part: CT105C
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Complete male and female connectors. Push fit terminals. Fast fit cordgrip.

  • Complete male and female connectors
  • Push fit terminals
  • Fast fit cordgrip

Width :36mm
Model :Plug
Halogen free :No
Height :24mm
Connection type :Spring clamp connection
Locking mechanism :Integrated in plug-in connector
Rated current :20A
Rated voltage :250V
With strain relief :No
Number of poles :3
Length :142mm
Housing material :Polyamide (PA)
Surface finish contacts :Other
Mechanical coding :No
Rated surge voltage :4kV
Contact material :CuZn
Degree of protection (IP rating) :IP20
Number of connections per pole :2
Pole codification :L, N, PE
Colour coding/contact insert :Blue
Connection cross section (fine-strand) :1.5 to 2.5mm2
Connection cross section (solid-core) :1.5 to 2.5mm2
