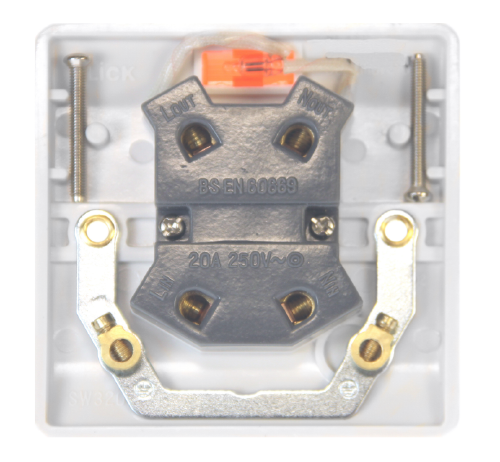

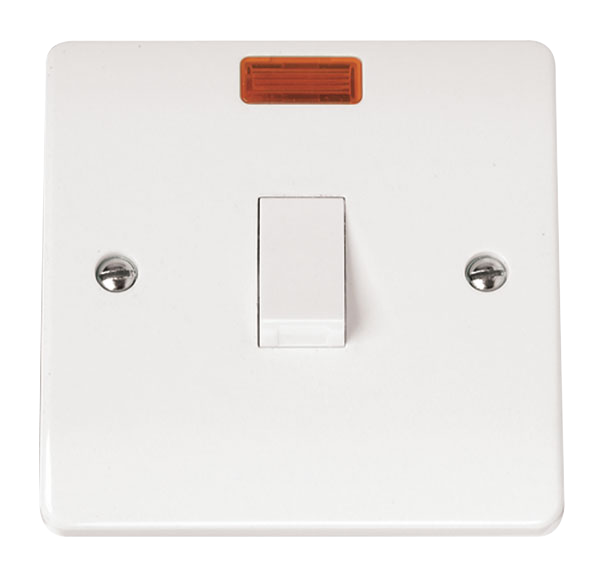

CLICK CMA623 MODE 20A Double Pole Plate Switch With Neon Polar White

Part: CMA623
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Stylish smooth profile plate in Polar white finish with Antibacterial & Antiviral Certified material.

  • Stylish smooth profile plate
  • Polar white finish
  • Antibacterial & Antiviral Certified material

Nominal voltage :250V
Mounting method :Surface mounted
Assembly arrangement :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :No
With mounting plate :No
Connection type :Screwed terminal
Illumination :Yes
Surface protection :Untreated
Recess depth :9.8mm
Rated current :20A
Feedback-signal contact :No
Material qualifier :Thermoplastic
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :2-pole switch
Number of rockers/gangs :1
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :24.2mm
Label space/information surface :Optional
Function lighting :Illuminated (on)
IFTTT support available :No
Minimum depth of back box :25mm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Heating switch :No
Antibacterial treatment :No
