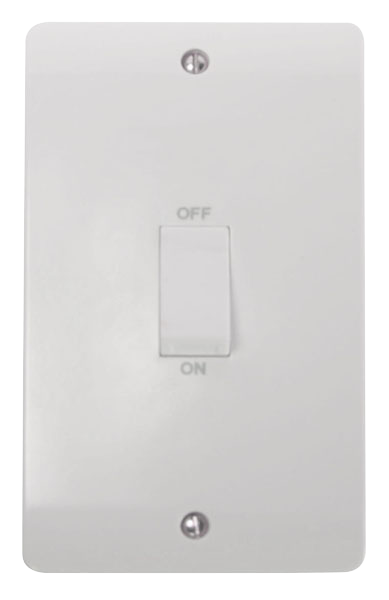

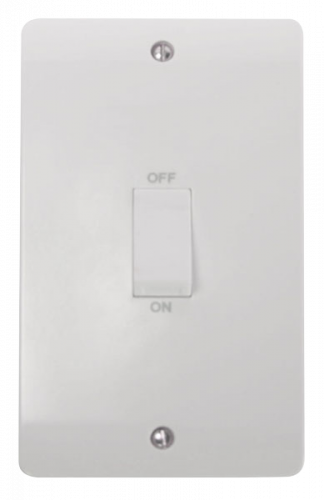

CLICK CMA502 MODE 45A 2 Gang (Vertical) Double Pole Plate Switch With White Rocker Polar White

Part: CMA502
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Stylish smooth profile plate in Polar white finish with white rocker. Antibacterial & Antiviral Certified material.

  • Stylish smooth profile plate
  • Polar white finish
  • Antibacterial & Antiviral Certified material

Nominal voltage :250V
Mounting method :Surface mounted
Assembly arrangement :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :No
With mounting plate :No

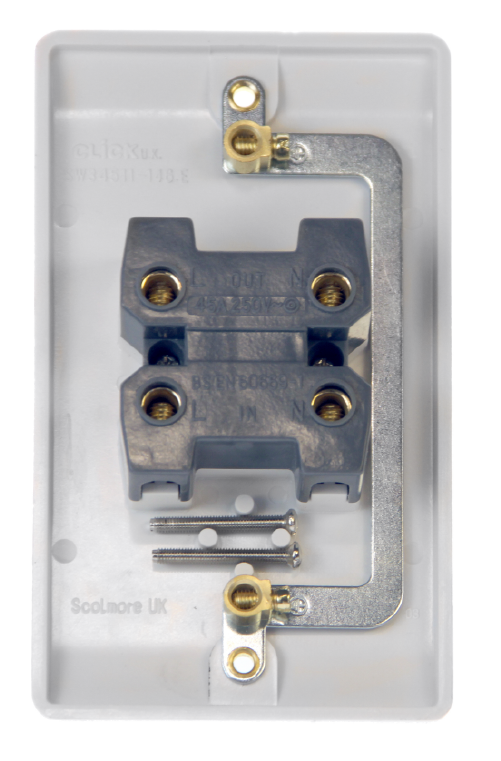

Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :22mm
Rated current :45A
Feedback-signal contact :No
Material qualifier :Thermoplastic
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :2-pole switch
Number of rockers/gangs :1
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :146mm
Depth of device :37mm
Label space/information surface :Optional
Function lighting :Illuminated (on)
IFTTT support available :No
Minimum depth of back box :35mm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Heating switch :No
Antibacterial treatment :No
