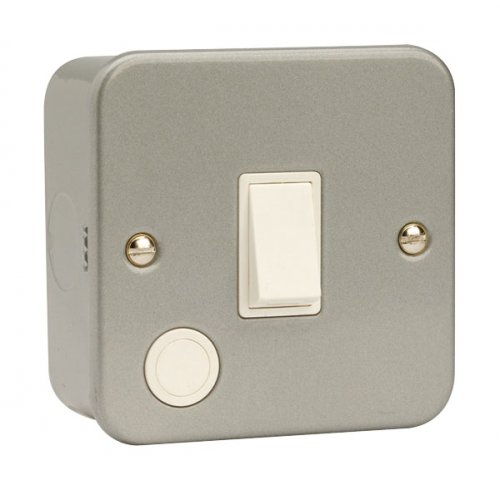

CLICK CL022 ESSENTIALS Metal Clad 20A DP Switch With Optional Flex Outlet

Part: CL022
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Electrophoretically coated plate and back box. Complete with 40mm deep back box. Twin earth terminals.

  • Electrophoretically coated plate and back box
  • Complete with 40mm deep back box
  • Twin earth terminals

Dimensions (mm) :80 (W) x 80 (H) x 42 (D)
Plate Fixing Centres - Horizontal (mm) :60.3
Style :Metal Clad
Finish :Metal Clad Grey
Materials Front Plate & Mounting Box :Electrophoretically Coated Steel
Rated Voltage (V~) (Ue) 250 Frequency (Hz) :50
Resistive Load Rating (A) :20
Termination Type :Screw
Terminal Size (mm) :Ø5 Terminal Torque Value (Nm) 1.8
Terminal Capacity - Solid (mm²) :3 x 2.5
Double Pole Switch :Yes
Twin Earth Terminals :Yes
Flex Outlet Available :Yes
Flex Outlet Location Front of Plate Flex Outlet Dimension (mm) :Ø10
Supplied Back Box Depth (mm) :40
Back Box Knockouts - Total (mm) :5 x Ø20
Back Box Knockouts - Top (mm) :2 x Ø20 Back Box Knockouts - Sides (mm) 1 x Ø20
Back Box Knockouts - Bottom (mm) :1 x Ø20 Back Box Knockouts - Rear (mm) None
Back Box Earth Terminal Supplied :Yes
Operational Temperature (°C) :-5 to +40
