CLICK CL011
Image is for illustrative purposes only

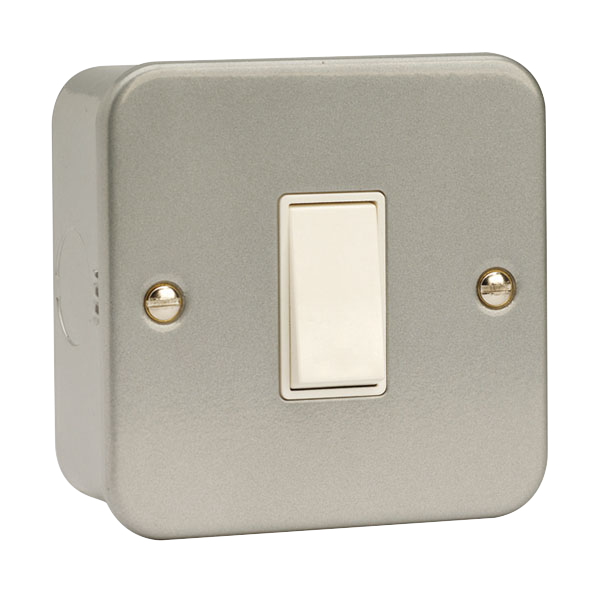

CLICK CL011 ESSENTIALS Metal Clad 10AX 1 Gang 2 Way Plate Switch

Part: CL011
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Electrophoretically coated plate and back box. Complete with 40mm deep back box. Interchangeable MiniGrid® module.

  • Electrophoretically coated plate and back box
  • Complete with 40mm deep back box
  • Interchangeable MiniGrid® module

Nominal voltage :250V
Mounting method :Surface mounted
Assembly arrangement :Basic unit with full cover plate
Method of operation :Rocker
Colour :Grey
Halogen free :No
With mounting plate :No
Connection type :Screwed terminal
Illumination :No
Surface protection :Metallic
Recess depth :40mm
Rated current :10A
Feedback-signal contact :No
Material qualifier :Other
Type of lighting :Other
Material :Metal
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :10
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :80mm
Height of device :80mm
Depth of device :42mm
Label space/information surface :Optional
Function lighting :Illuminated (on)
Number of module spaces (modular system) :1
IFTTT support available :No
Minimum depth of back box :0mm
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Heating switch :No
Antibacterial treatment :No
