B.E.G. 96510
Image is for illustrative purposes only

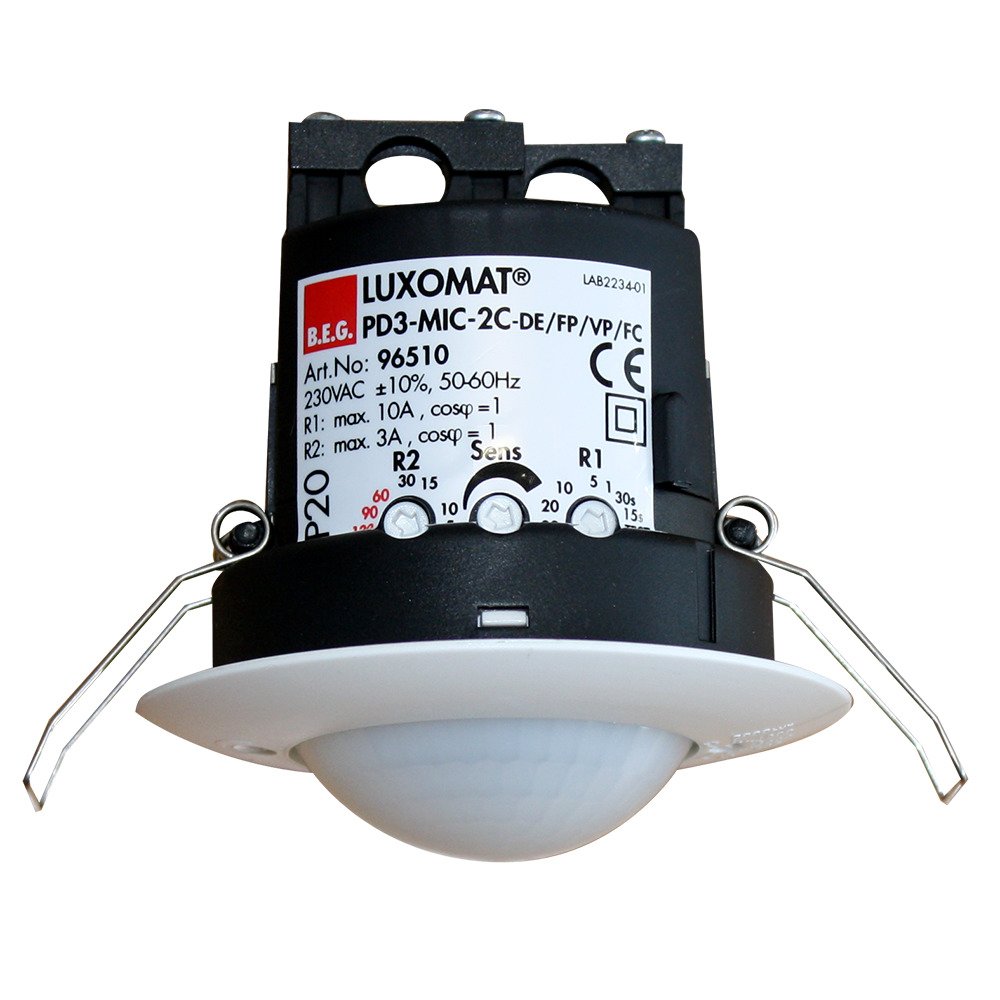

B.E.G. 96510 (PD3-MIC-2C-FC) Motion Detector Ceiling Mounting 360° FC White IP20 10m 2 Channel

Part: 96510
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Ceiling motion detector for indoor use with a 360° detection area
  • One channel for light switching
  • One additional potential-free (dry) contact for HVAC
  • Acoustic sensor independently adjustable

Mounting method :Other
Colour :White
Model :Movement sensor
Height :80mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
With remote control :No
Diameter :84mm
Suitable for wall mounting :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :6M
Max. reach sideways :5M
Max. switching power :2300W
Max. starting current :165A
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :10M
Remote operation :No
HVAC-control :Yes
Auxiliary input :No
RAL-number (similar) :9010
With signal unit :No
Control current :2mA
Teach-function for response value luminosity :Yes
Networkable :No
With connection cable :No
Alarm function :Yes
Surface finish :Matt
Min. switch-on time :30 s
Max. duty cycle :30 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :78
With DALI interface :No
IFTTT support available :No
Max. presence range :12m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :Yes
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
