B.E.G. 94055

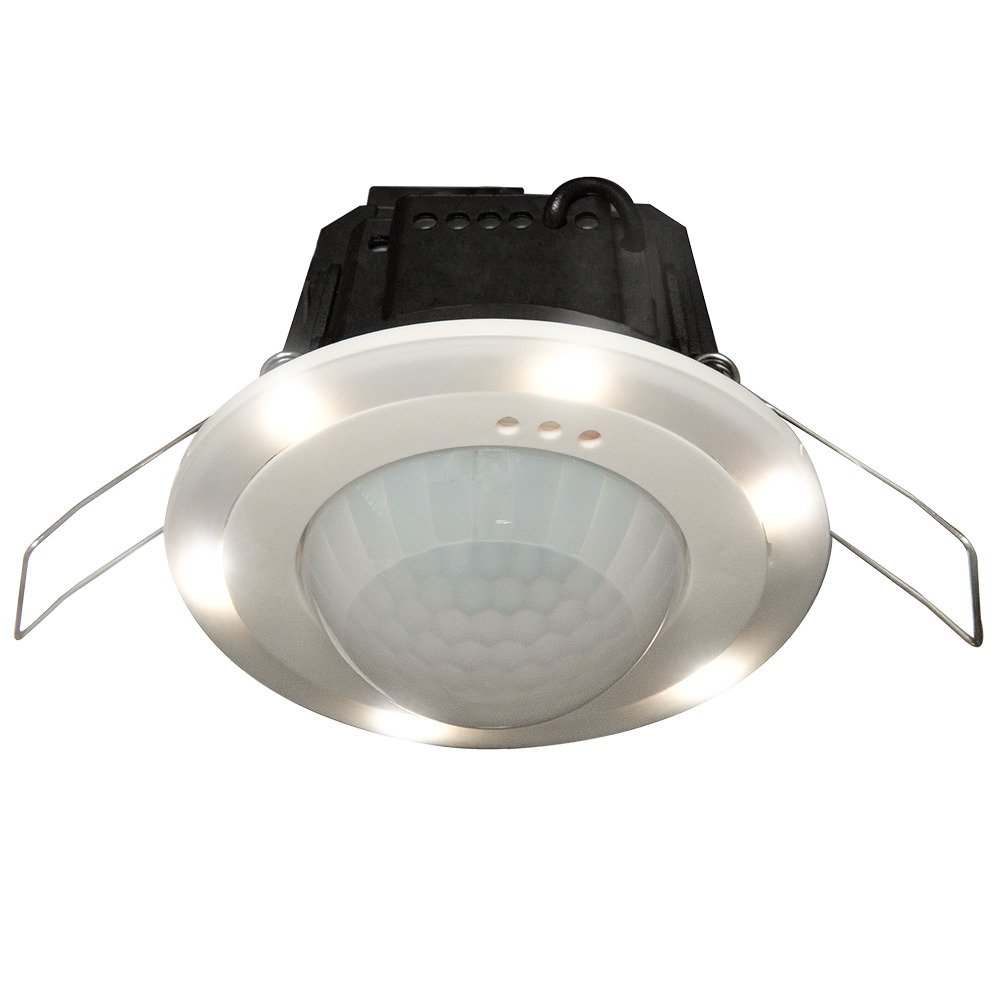

Image is for illustrative purposes only

B.E.G. 94055 (PD2N-M-1C-LED-FC) Occupancy Detector LED 360° FC White IP20 10m 1 Channel

Part: 94055
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Remote control-capable occupancy detector for inside use with circular detection area
  • Integrated LED light as separately adjustable orientation- and night light
  • One channel for light switching
  • Numerous setting and readout options via the bidirectional B.E.G. smartphone app
  • Extension of the detection range possible by using up to 5 other PD2N-M-1C-LED
  • Can be used as either Master device or Slave device

Mounting method :Other
Colour :White
Model :Presence detector
Halogen free :Yes
Height :85mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :84mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Max. reach frontally :6M
Max. reach sideways :5M
Max. switching power :2300W
Max. starting current :165A
Material :Plastic
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :10M
Remote operation :Yes
HVAC-control :No
Auxiliary input :Yes
RAL-number (similar) :9010
With signal unit :No
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK03
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :10 s
Max. duty cycle :1080 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :78
With DALI interface :No
IFTTT support available :No
Max. presence range :12m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Max. switching power LED :300W
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
