B.E.G. 93930
Image is for illustrative purposes only

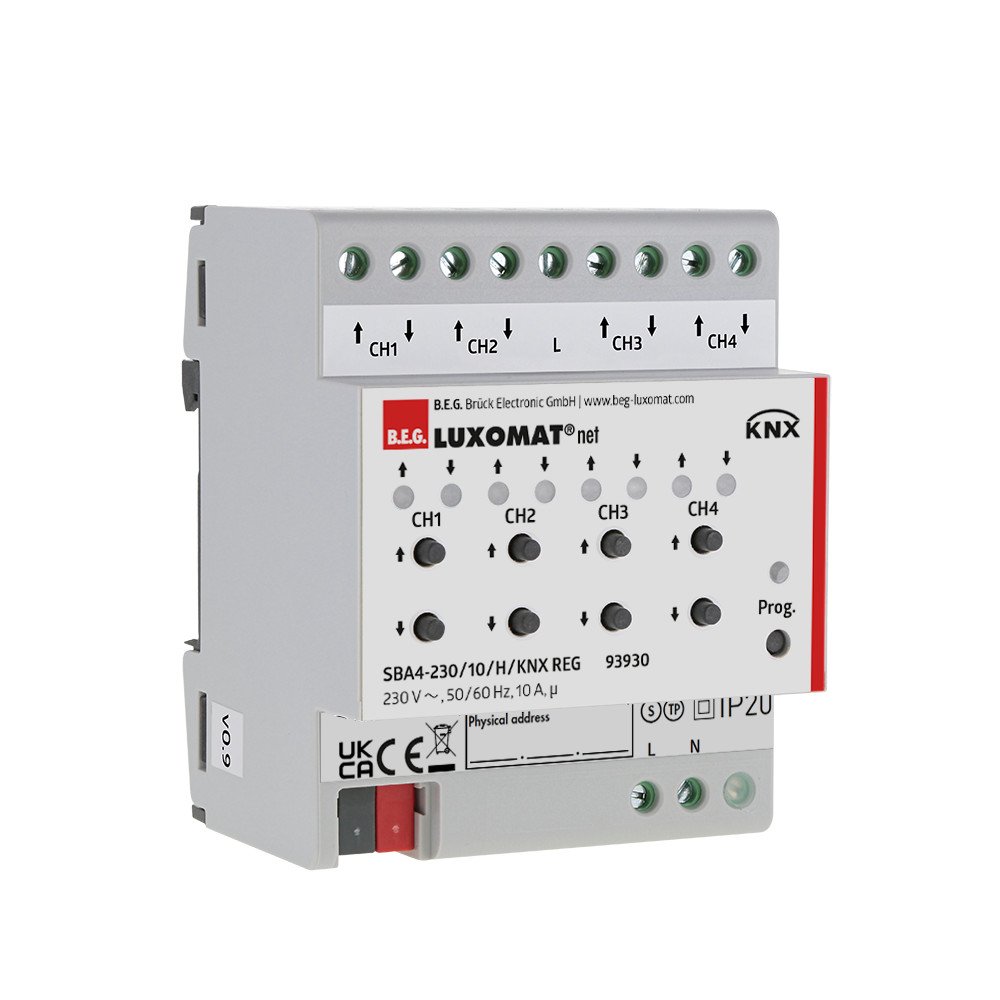

B.E.G. 93930 (SBA4-230 / 10 / H / KNX REG white) DIN-rail Mount Device 35mm Profile Rail White IP20 4 Channel

Part: 93930
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • The blind actuators KNX SBA receive KNX telegrams and control several blind motors with limit switches independently of one another
  • Each channel is controlled with two monostable relays and can also be manually activated with the buttons at the actuator
  • Each channel can be individually programmed through the ETS3/4. Status reports, blocking functions, central switch functions and extensive calibration and positioning functions are available for selection
  • In the event of bus voltage failure or resumption, the switch positions of the relay can be individually programmed for each channel
  • The device is planned for permanent installation on a DIN-rail (top-hat) in high voltage current distributors
  • Installation must take place in dry interiors

Mounting method :DRA (DIN-rail adapter)
Current type :AC
Bus system KNX :Yes
Max. number of venetian-blind outputs :4
