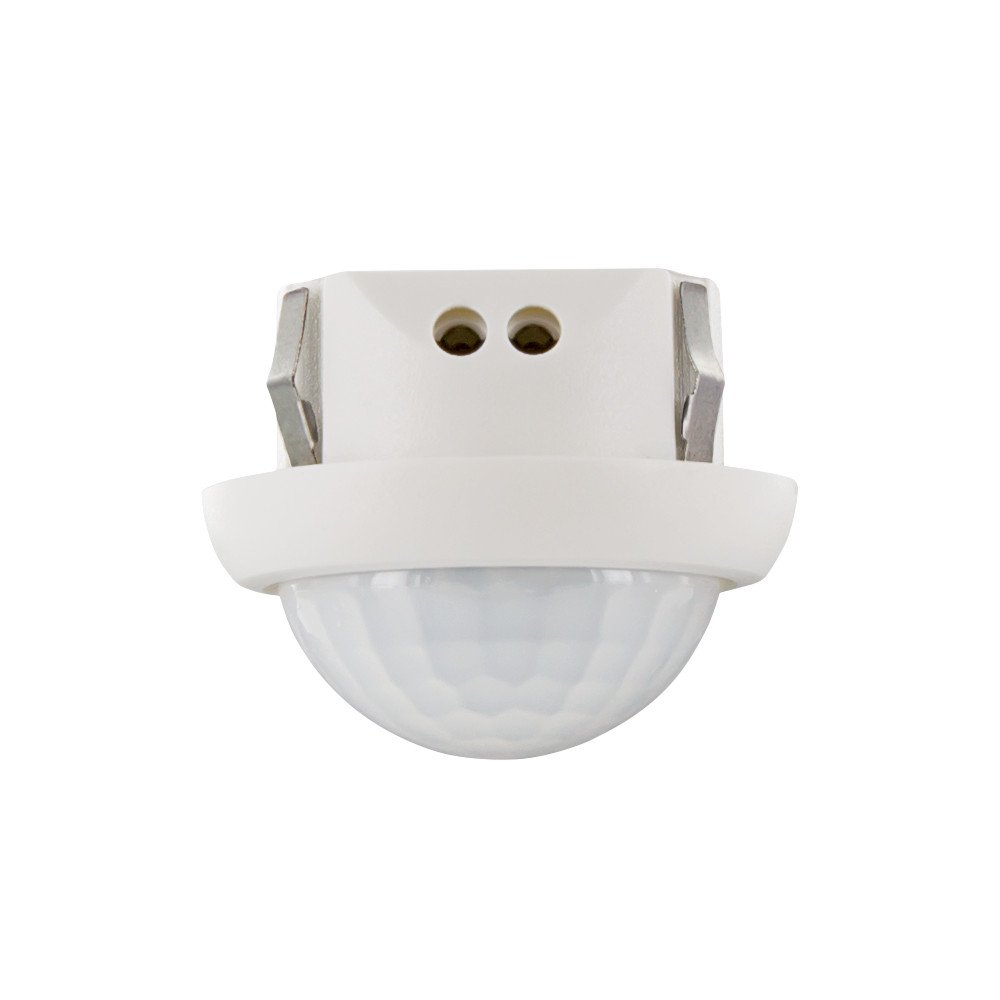

B.E.G. 93909 (PICO-DALI-SYS-FC) Mini Occupancy Detector 360° FC White IP20 DALI-SYS 10m

Part: 93909
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Mini DALI multisensor with only 11mm installation depth for installation in luminiares
  • Powered via DALI bus
  • Seemless integration in B.E.G. LUXOMAT(R)net DALI-SYS
  • Detection area can be extended thanks to master-slave-mode
  • Semi-automatic, full-automatic or twilight switch mode
  • Integrated daylight harvesting circuit (or switch output)
  • Guided Light, Soft-Start PLUS, Orientation light PLUS
  • Works out-of-the box for easy installation check
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-SYS

Mounting method :Other
Colour :White
Model :Presence detector
Height :27mm
Diameter :33mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :6M
Max. reach sideways :5M
Length of connection cable :0mm
Other bus systems :Other
Diameter reach on floor :10M
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Optimum mounting height :2.5M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
