B.E.G. 93854
Image is for illustrative purposes only

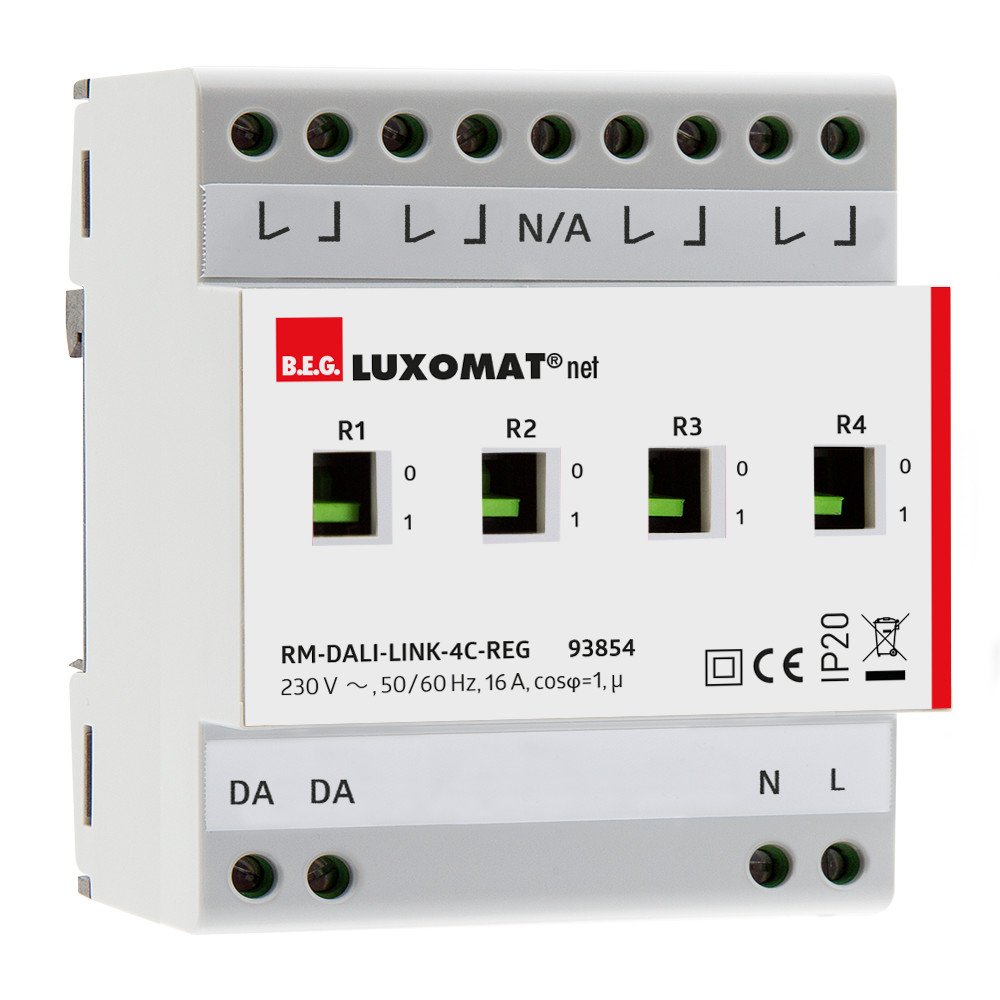

B.E.G. 93854 (RM-DALI-LINK-4C-REG white) Relay Module DIN-rail (TH35), White IP20 DALI-LINK 4 Channel

Part: 93854
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Switching actuator for switching loads
  • Integrated application controller with different operating modes
  • Operating modes: Standard, Cut-off, HVAC, Impulse, Alarm
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-LINK

Mounting method :DRA (DIN-rail adapter)
Output power :3000W
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Max. switching power :3000W
Bus connection included :Yes
Max. number of switching contacts :4
Width in number of modular spacings :1
Max. switching current :16A
Other bus systems :Other
Bus system LON :No
Suitable for C-load :No
Local operation/hand operation :No
Degree of protection (IP rating) :IP20

Make an enquiry

...
