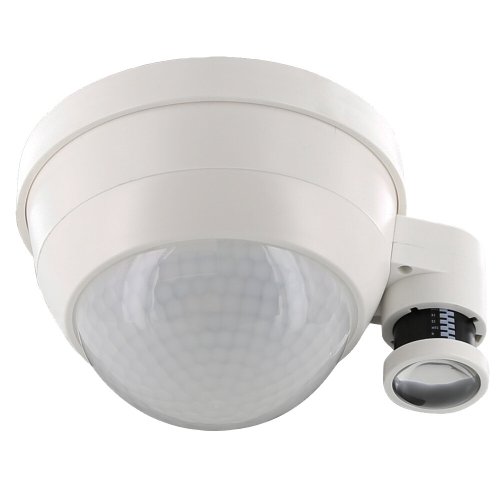

Image is for illustrative purposes only

B.E.G. 93545 (PD4-BMS-GH-SM DALI-2) Multi-sensor High-Bay Storages 360° SM White IP54 DALI-2 30m

Part: 93545
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • DALI-2 multisensor (input device) for surface mounting in large mounting heights
  • DALI-2 certified product
  • Powered via DALI bus
  • External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application.
  • Bright LED indication for commissioning
  • DALI multimaster technology according to IEC 62386 part 103
  • Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303
  • Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304
  • Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304.
  • Mixed light measurement with external light sensor

Mounting method :Surface mounted
Colour :White
Model :Other
Height :76mm
Surface protection :Other
Creep-under protection :Yes
Number of channels :1
Diameter :101mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :30M
Max. reach sideways :15M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :30M
Auxiliary input :No
RAL-number (similar) :9010
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :1 s
Max. duty cycle :30 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Switch-off delay self-learning :No
Optimum mounting height :14M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :Yes
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
