B.E.G. 93540
Image is for illustrative purposes only

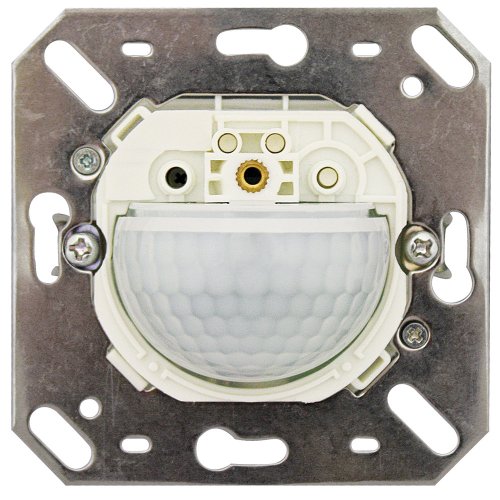

B.E.G. 93540 (Indoor 180-BMS DALI-2 covering not included) Multi-Sensor 180° White IP20 DALI-2 10m

Part: 93540
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • DALI-2 multisensor (input device), especially for installation in walls
  • DALI-2 certified product
  • Powered via DALI bus
  • DALI multimaster technology according to IEC 62386 part 103
  • Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303
  • Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304
  • Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304.
  • Measuring of mixed light thanks to internal light sensor
  • Detection area can be restricted with blinds
  • For use with covering (interior cover dimensions 50 x 50 mm) in 5 different colours

Mounting method :Flush mounted
Colour :Other
Width :70mm
Model :Other
Height :61mm
Depth :70mm
Surface protection :Untreated
Creep-under protection :No
Number of channels :1
Suitable for wall mounting :Yes
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :3M
Max. reach sideways :5M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :10M
Auxiliary input :No
RAL-number (similar) :9010
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Switch-off delay self-learning :No
Optimum mounting height :1.1M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :Yes
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :No
