B.E.G. 93531
Image is for illustrative purposes only

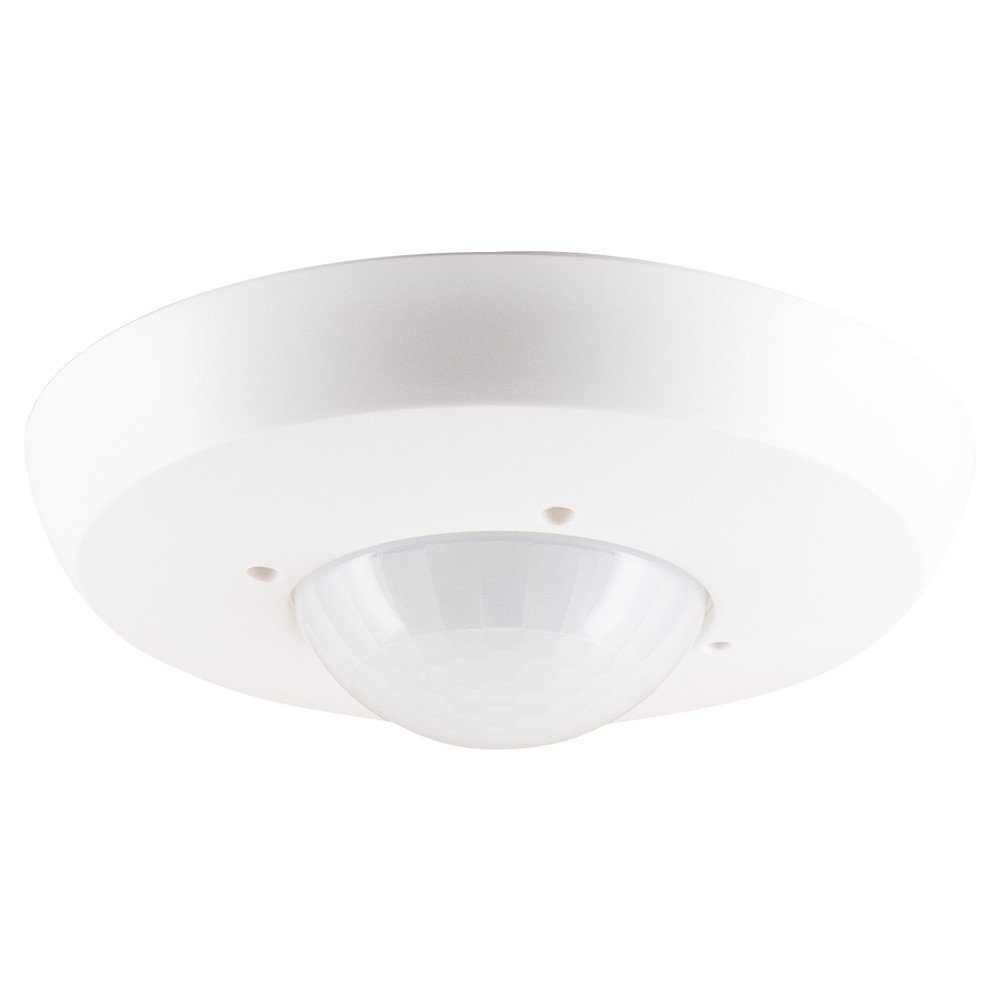

B.E.G. 93531 (PD2N-KNXs-OCCULOG-DX-FM) Occupancy Detector 360° FM White IP20 KNX Secure 10m 4 Channel

Part: 93531
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • KNX occupancy detector with integrated KNX bus connector
  • Low installation depth
  • 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable)
  • Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
  • Two logic modules
  • Individual adaption of the PIR sensor sensitivity
  • Mixed light measurement with internal and external light sensor
  • Various locking functions
  • Status LEDs can be activated / deactivated
  • Programming button (phys. address) can be operated via remote control

Mounting method :Flush mounted
Colour :White
Model :Presence detector
Height :42mm
Surface protection :Untreated
Creep-under protection :Yes
Diameter :106mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :6M
Max. reach sideways :5M
Bus system KNX :Yes
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Diameter reach on floor :10M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :1 s
Max. duty cycle :1440 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :Yes
Suitable for ceiling mounting :Yes
