B.E.G. 93529
Image is for illustrative purposes only

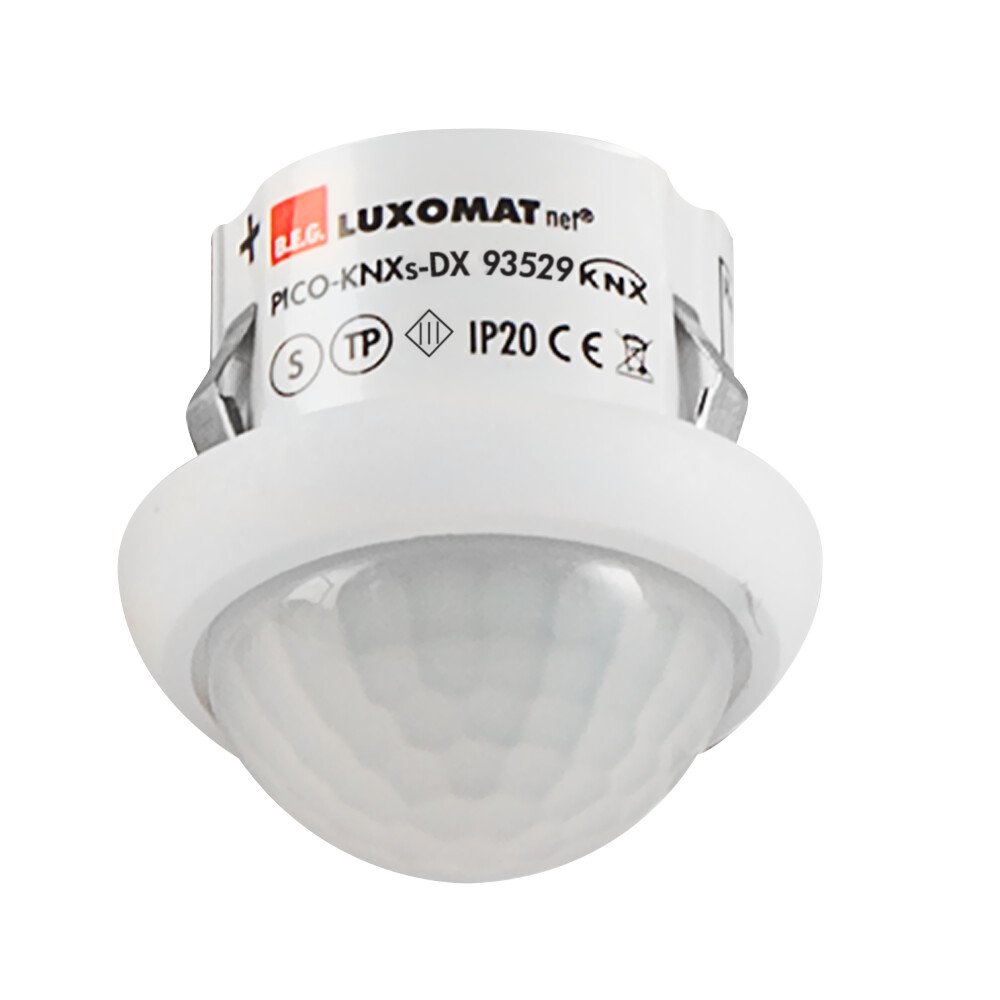

B.E.G. 93529 (PICO-KNXs-DX-FC) Mini Occupancy Detector DX 360° FC White IP20 KNX Secure 10m 4 Channel

Part: 93529
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • KNX mini occupancy detector with integrated bus connector
  • KNX Secure ready
  • HCL/RGB control
  • Parameterisation from ETS 5 for integration into KNX systems
  • Individual adaption of the PIR sensor sensitivity
  • Mixed light measurement using internal and remote (optional) light sensors
  • Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
  • 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable)
  • Regulation of up to three lighting groups using offset (external influence possible)
  • Short presence, self-adjusting follow-up time, corridor function

Mounting method :Other
Colour :White
Model :Presence detector
Height :32mm
Surface protection :Untreated
Creep-under protection :Yes
Diameter :33mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach sideways :5M
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :None
Bus system LON :No
Diameter reach on floor :10M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :1 s
Max. duty cycle :1440 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Bus system KNX radio :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
