B.E.G. 93528
Image is for illustrative purposes only

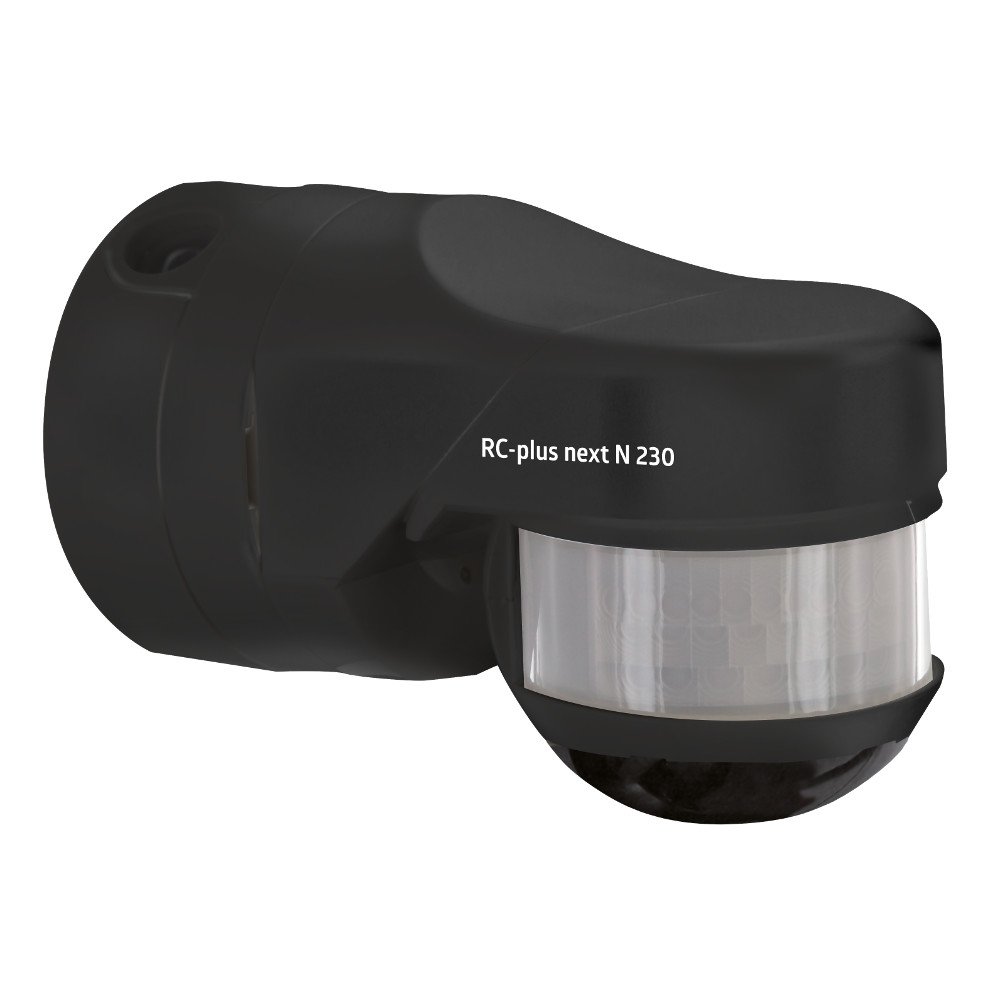

B.E.G. 93528 (RC-plus next N 230 KNXs-DX 230 black) Occupancy Detector 230° Wall/Ceiling, Black IP54 KNX Secure 20.

Part: 93528
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • KNX occupancy detector with integrated KNX bus connector
  • KNX Secure ready
  • Integrated downlight with orientation or a night light (RGB) function
  • HCL/RGB control
  • Parameterisation from ETS 5 for integration into KNX systems
  • Individual adaption of detection sensitivity for each PIR sensor
  • PIR sensors can be deactivated individually
  • Direction of movement can be identified
  • Mixed light measurement using internal and remote (optional) light sensors
  • Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode

Colour :Black
Width :71mm
Model :Movement sensor
Height :85mm
Depth :121mm
Surface protection :Untreated
Creep-under protection :Yes
Suitable for wall mounting :Yes
Staircase monitoring :No
Material qualifier :Other
Max. reach sideways :20M
Bus system KNX :Yes
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Diameter reach on floor :40M
Auxiliary input :Yes
RAL-number (similar) :9005
Teach-function for response value luminosity :Yes
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Min. switch-on time :1 s
Max. duty cycle :1440 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
