B.E.G. 93525

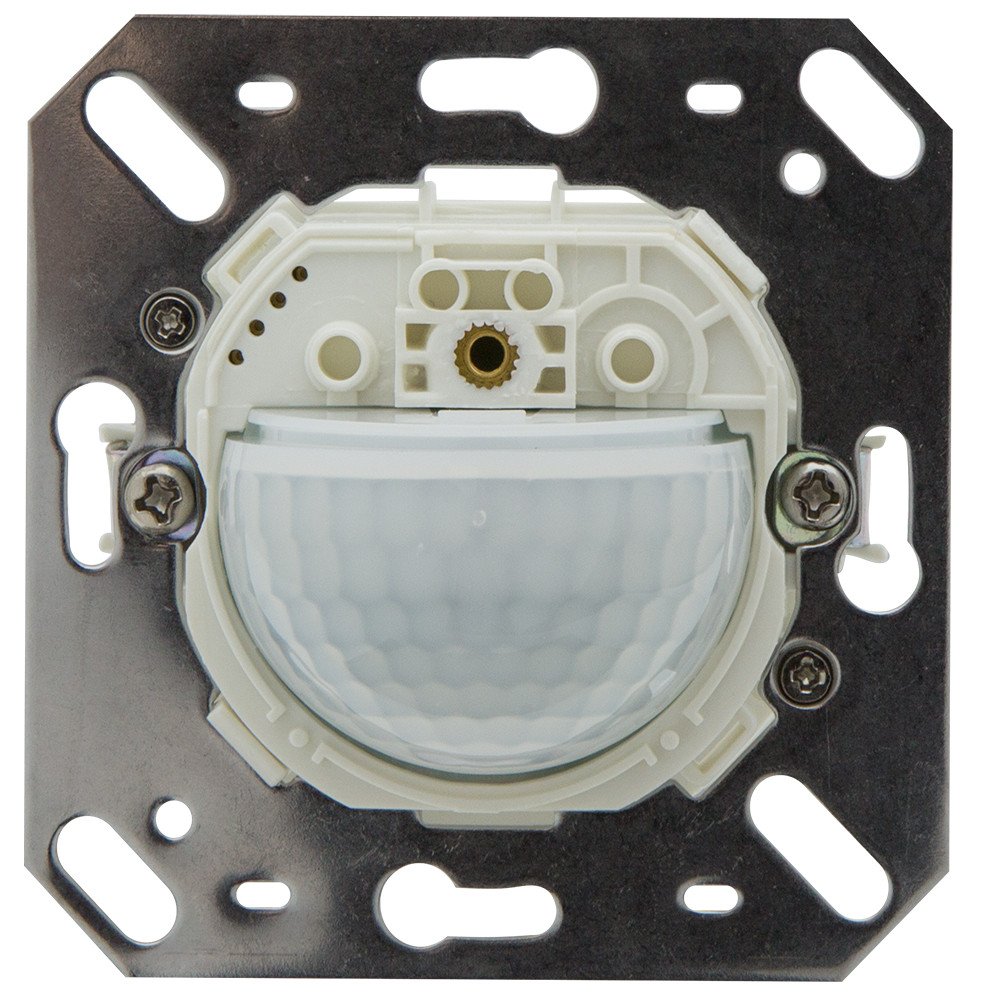

Image is for illustrative purposes only

B.E.G. 93525 (Indoor 180-KNXs-DX covering not included) Wall Switch DX 180° FM - IP20 KNX Secure 10m 4 Channel

Part: 93525
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • KNX occupancy detector with integrated KNX bus coupler, especially for installation in walls
  • KNX Secure ready
  • HCL/RGB control
  • Parameterisation from ETS 5 for integration into KNX systems
  • Individual adaption of the PIR sensor sensitivity
  • Mixed light measurement using internal and remote (optional) light sensors
  • Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
  • 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable)
  • Regulation of up to three lighting groups using offset (external influence possible)
  • Short presence, self-adjusting follow-up time, corridor function

Mounting method :Flush mounted
Width :70mm
Model :Presence detector
Height :61mm
Depth :70mm
Creep-under protection :No
Suitable for wall mounting :Yes
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :3M
Max. reach sideways :10M
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Length of connection cable :0mm
Bus system LON :No
Diameter reach on floor :10M
Auxiliary input :Yes
Teach-function for response value luminosity :Yes
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Min. switch-on time :1 s
Max. duty cycle :1440 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Optimum mounting height :1.1M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :Yes
Suitable for ceiling mounting :No
