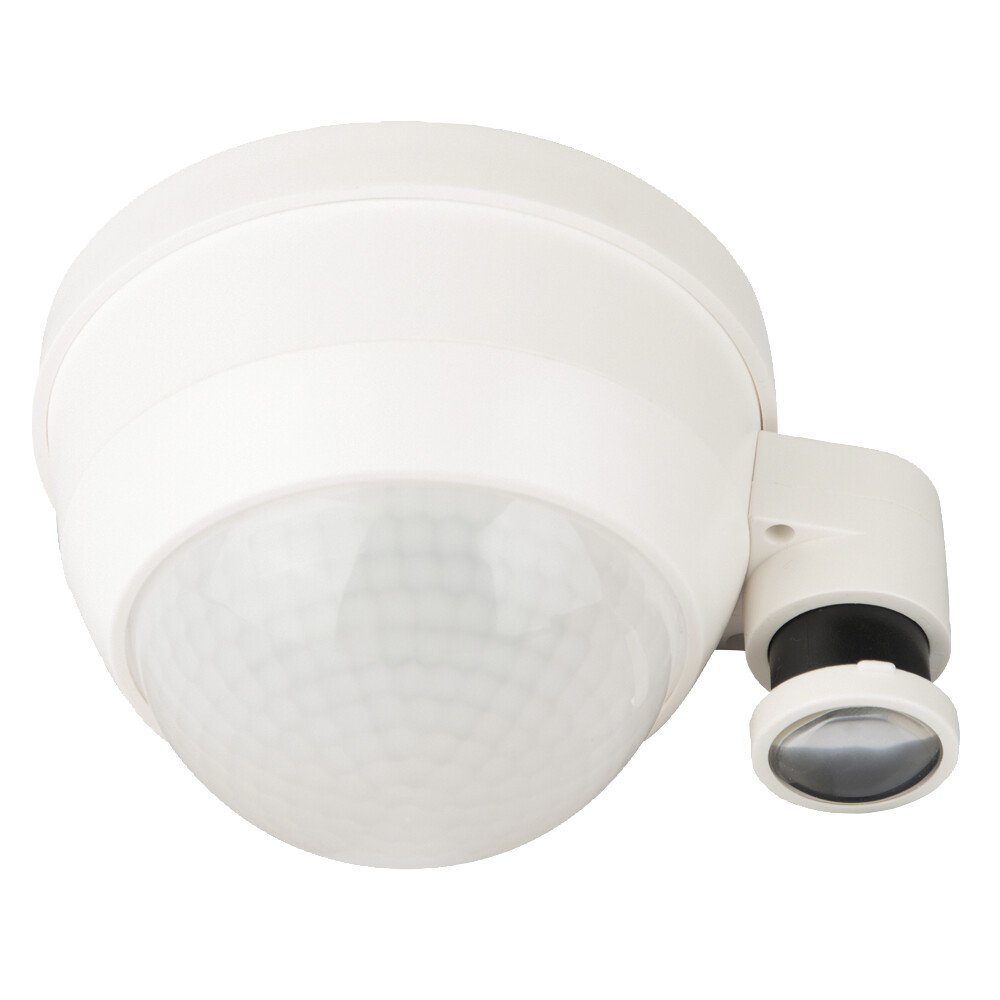

B.E.G. 93518 (PD4-KNXs-GH-DX-SM) Occupancy Detector High-Bay Storages 360° SM White IP54 KNX Secure 3.

Part: 93518
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • KNX occupancy detector designed for high-bay warehouses, with integrated KNX bus connector
  • KNX Secure ready
  • HCL/RGB control
  • Parameterisation from ETS 5 for integration into KNX systems
  • Individual adaption of detection sensitivity for each PIR sensor
  • PIR sensors can be deactivated individually
  • Direction of movement can be identified
  • External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application.
  • Mixed light measurement with internal and external light sensor
  • Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Height :76mm
Surface protection :Untreated
Creep-under protection :Yes
Diameter :101mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach sideways :15M
Bus system KNX :Yes
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :30M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :1 s
Max. duty cycle :1440 Min
Voltage supply over bus :Yes
Response value luminosity adjustable :Yes
Optimum mounting height :14M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
