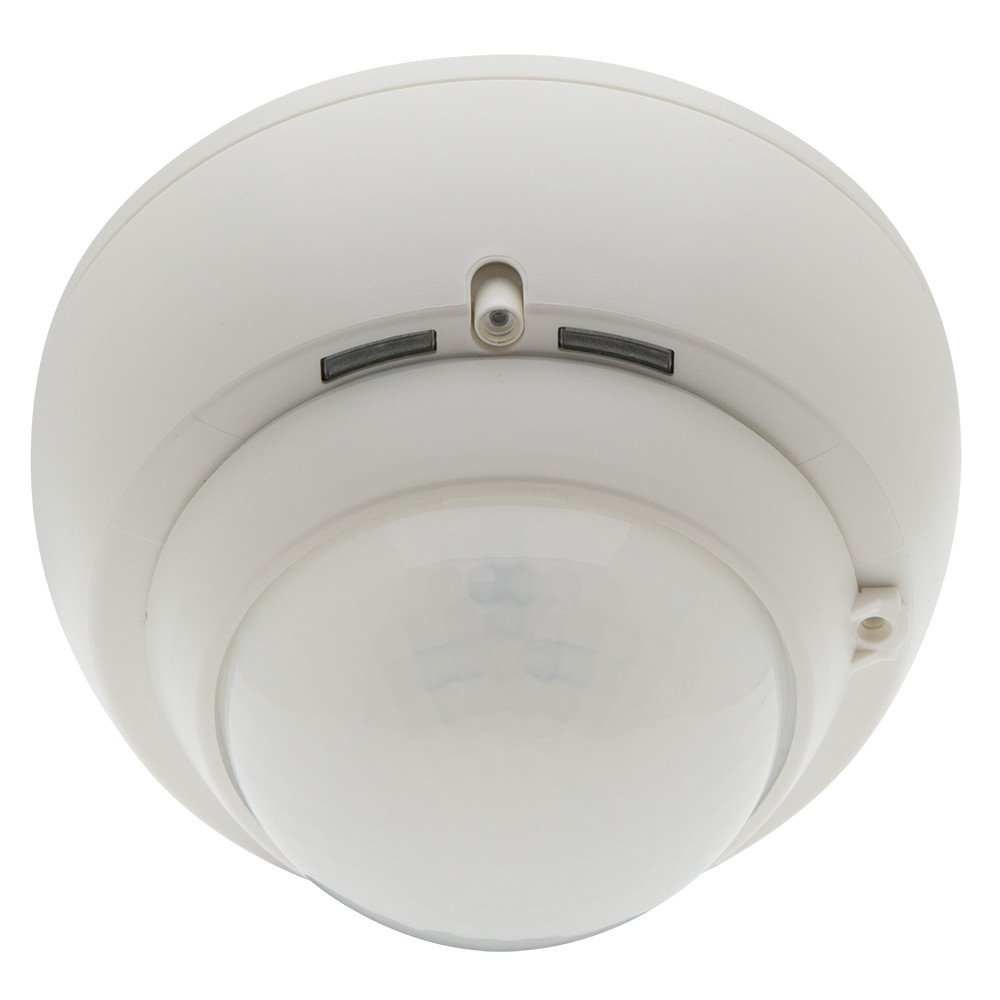

Image is for illustrative purposes only

B.E.G. 93485 (PD4-M-HCL2-SM) Occupancy Detector HCL2 360° SM White IP20 24m 3 Channel

Part: 93485
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Bidirectional occupancy detector with integrated DALI application controller for an energy-efficient and biologically effective light control (Human Centric Lifghting)
  • Integrated DALI power supply and 3 push-button inputs
  • Preset and freely adjustable HCL curves (12 anchor points per 24h)
  • Adjustable communication mode "Broadcast" (1 light zone, without addressing) or "Multicast" (several light zones, HVAC, with addressing)
  • Dim-2-Warm: brightness and colour temperature can be infinitely adjusted simultaneously with a long keystroke
  • Calling up lighting scenes using accessory
  • Mixed light measurement with internal and external light sensor
  • External light sensor can be swivelled by 45
  • Powerful switching relay for different operating modes, e.g. Cut-off function for DALI ballasts, HVAC, blackboard illumination.
  • Quick commissioning and maintenance processes via Smartphone/Tablet App (Android, iOS) - No PC-Tool required

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Height :85mm
Surface protection :Other
Creep-under protection :Yes
Number of channels :4
Diameter :124mm
Suitable for wall mounting :No
Staircase monitoring :No
Material qualifier :Other
Switching power :2300W
Max. reach frontally :8M
Max. reach sideways :12M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :24M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :Yes
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :150 Min
Voltage supply over bus :No
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
