B.E.G. 93480
Image is for illustrative purposes only

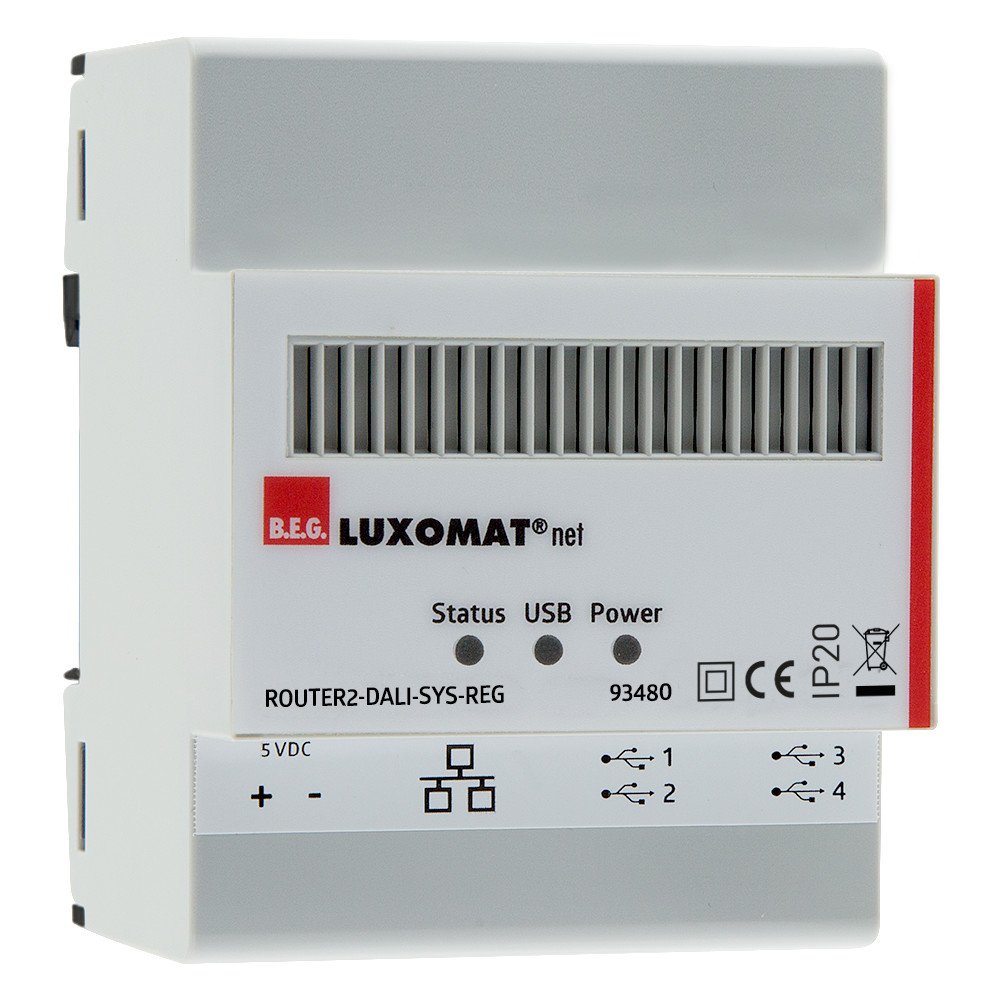

B.E.G. 93480 (ROUTER2-DALI-SYS-REG white) DALI Router Gen2 DIN-rail (TH35), White IP20

Part: 93480
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Router with integrated web server and application controller for DIN rail mounting according to DIN EN 60715.
  • 4 USB ports for controlling up to 4 separately available B.E.G. application controllers with integrated DALI power supply unit
  • 1 LAN port for networking up to 100 devices, up to 400 interconnected DALI lines possible
  • Central management of parameters, addresses, groups and scenes for all networked DALI components
  • Decentralized application logic in multisensors and buttons - Router only takes over higher-level functions
  • User and rights management for different roles
  • DALI emergency light manager
  • Expanded guided light function GUIDED LIGHT PLUS (across all DALI lines)
  • Event routing function for implementing DALI cross-line lighting zones
  • Update Manager, for updating the router firmware via LAN/WAN

Mounting method :DRA (DIN-rail adapter)
Colour :White
Model :Ethernet
Surface protection :Other
Material qualifier :Other
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :No
Material :Plastic
Width in number of modular spacings :4
Other bus systems :Other
Bus system LON :No
With label area :No
Degree of protection (IP rating) :IP20
With LED indication :Yes
Transparent :No
Surface finish :Matt
Bus system KNX radio :No
Radio frequent bidirectional :No
