B.E.G. 93473
Image is for illustrative purposes only

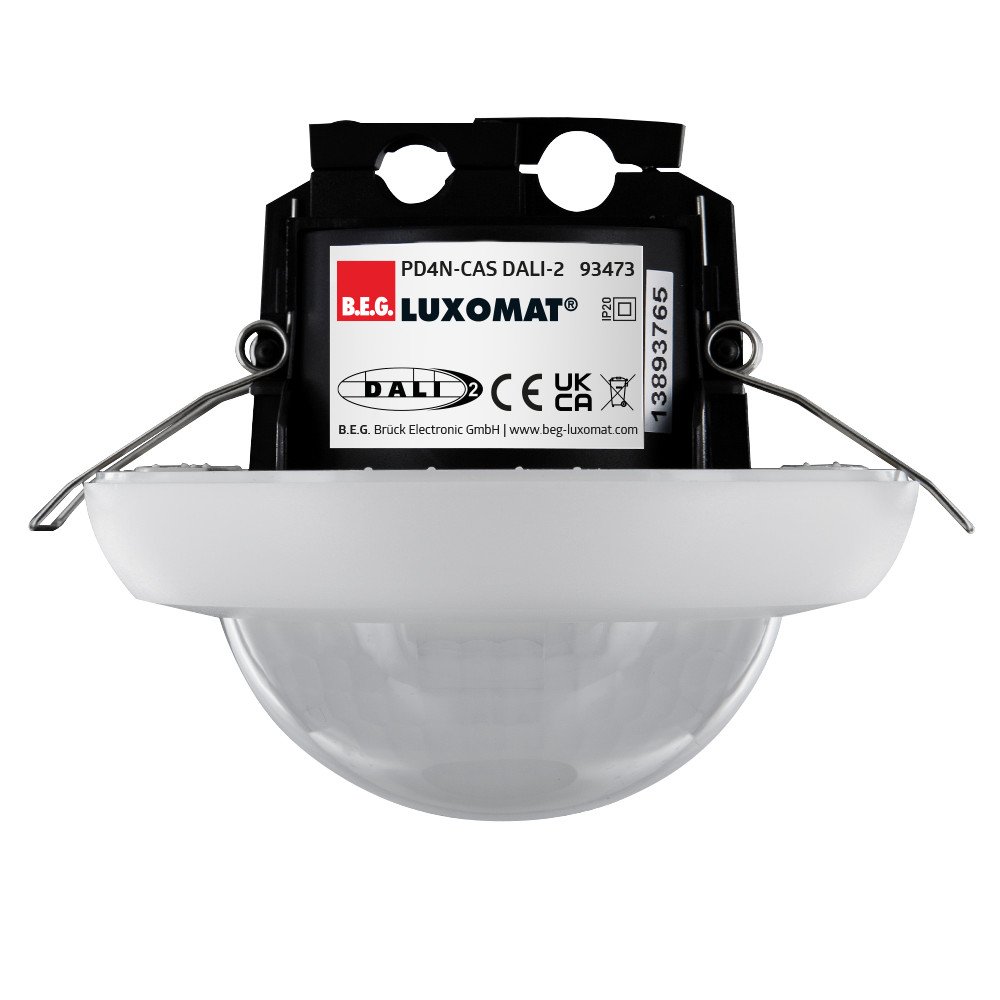

B.E.G. 93473 (PD4N-CAS DALI-2) Occupancy Detector Casambi 360° SM White IP20 DALI 24m 1 Channel

Part: 93473
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Casambi-enabled occupancy detector
  • DALI-2 interface for controlling digital dimmable ECGs in broadcast/multicast mode
  • Integrated temperature monitoring and short-circuit detection
  • Version as single-master device, can be networked wirelessly
  • DALI output power can be increased with accessories
  • Bright LED indication for commissioning
  • Mixed light measurement with internal and external light sensor
  • Weighting between internal and external light sensor can be adapted to suit the application
  • Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app
  • Extension of the detection area with additional B.E.G. Casambi devices possible

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Halogen free :Yes
Height :95mm
Surface protection :Untreated
Creep-under protection :Yes
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :106mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :8M
Max. reach sideways :12M
Material :Other
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :24M
Remote operation :Yes
HVAC-control :No
Constant light control :Yes
Auxiliary input :Yes
RAL-number (similar) :9010
With signal unit :No
Control current :4mA
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK04
With connection cable :No
Degree of protection (IP rating) :IP20
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Max. duty cycle :60 Min
Response value luminosity adjustable :Yes
Optimum mounting height :2.5M
Number of switching zones :450
With DALI interface :Yes
IFTTT support available :No
Max. presence range :32m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
