B.E.G. 93471
Image is for illustrative purposes only

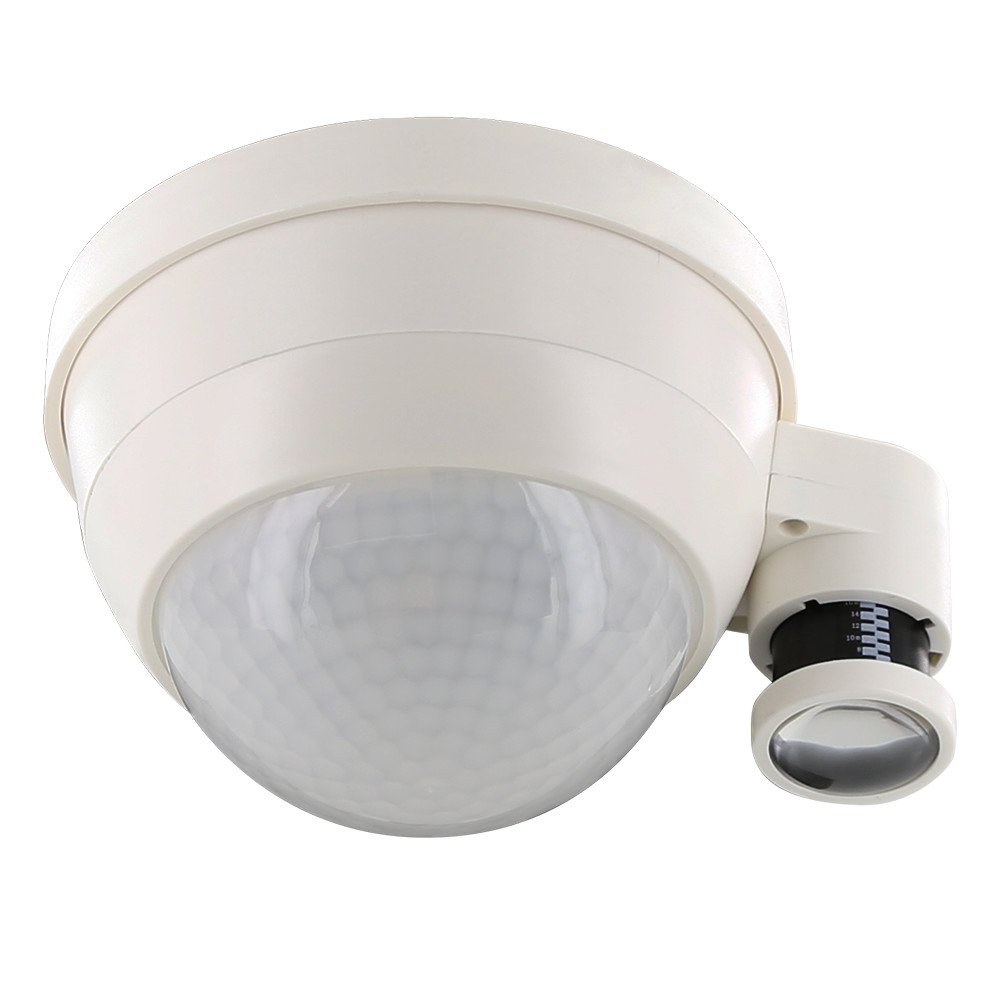

B.E.G. 93471 (PD4-CAS-GH DALI-2) Occupancy Detector Casambi 360° SM White IP54 DALI 30m 1 Channel

Part: 93471
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Casambi occupancy detector for surface mounting in large mounting heights
  • Integrated DALI power supply
  • DALI-2 interface for controlling digital dimmable ECGs in broadcast mode
  • DALI-2 certified product
  • Integrated temperature monitoring and short-circuit detection
  • Bright LED indication for commissioning
  • External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application.
  • Mixed light measurement with external light sensor
  • Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app
  • Extension of the detection area with additional B.E.G. Casambi devices possible

Mounting method :Surface mounted
Model :Presence detector
Halogen free :Yes
Height :76mm
Surface protection :Untreated
Voltage type :AC
Switching-on delay :0 s
Switch-off delay :0 s
With remote control :No
Diameter :101mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Bridging switch :No
Suitable for wireless transmission :No
Material qualifier :Other
Max. reach frontally :30M
Max. reach sideways :15M
Response value sensitivity adjustable :Yes
Length of connection cable :0mm
Dim function with dimmer basic element :No
Suitable for C-load :No
Diameter reach on floor :30M
Remote operation :Yes
HVAC-control :No
Constant light control :Yes
Auxiliary input :Yes
RAL-number (similar) :9010
With signal unit :No
Control current :4mA
Teach-function for response value luminosity :Yes
Networkable :No
Forced switch off :Yes
Impact resistance (IK rating) :IK04
With connection cable :No
Degree of protection (IP rating) :IP54
Alarm function :No
Transparent :No
Animal zone :No
Surface finish :Matt
Response value luminosity adjustable :Yes
Optimum mounting height :14M
Number of switching zones :700
With DALI interface :Yes
IFTTT support available :No
Max. presence range :0m2
Compatible with Apple HomeKit :No
Compatible with Google Assistant :No
Compatible with Amazon Alexa :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
Antibacterial treatment :No
