B.E.G. 93469
Image is for illustrative purposes only

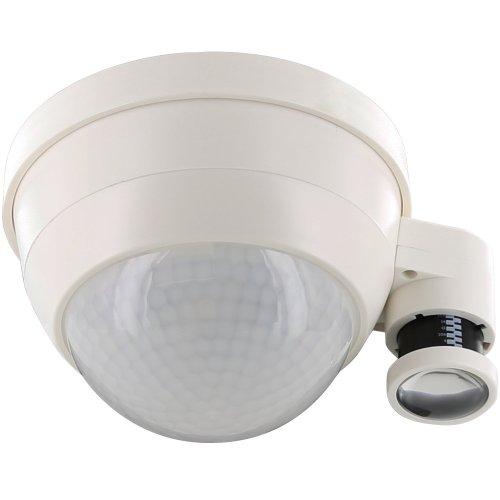

B.E.G. 93469 (PD4-M-DACO-GH-SM DALI-2) Occupancy Detector GH 360° SM White IP54 DALI 30m 1 Channel

Part: 93469
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Occupancy detector for large heights with integrated DALI application controller for energy-efficient lighting control
  • External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application.
  • DALI-2 certified product
  • Integrated DALI power supply
  • DALI interface for controlling digital, dimmable ECGs in broadcast mode
  • Manual switching or dimming via conventional pushbuttons
  • Bidirectional IR communication enables fast integration into the project management function of the B.E.G. One app
  • Complete range of functions can only be activated using the BLE-IR-Adapter and a compatible Smartphone or Tablet (Android, iOS).
  • Semi-automatic, full automatic, presence-independent or light-independent mode adjustable
  • Adjustable regulation dynamics (minimum and maximum values)

Mounting method :Surface mounted
Colour :White
Model :Presence detector
Height :76mm
Surface protection :Untreated
Creep-under protection :Yes
Number of channels :1
Diameter :101mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :15M
Max. reach sideways :15M
Bus system KNX :Yes
Bus system radio frequent :Yes
Bus system Powernet :Yes
Bus connection included :Yes
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :Yes
Diameter reach on floor :30M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :Yes
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :30 Min
Voltage supply over bus :No
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :10M
Bus system KNX radio :Yes
Radio frequent bidirectional :No
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
