B.E.G. 93459

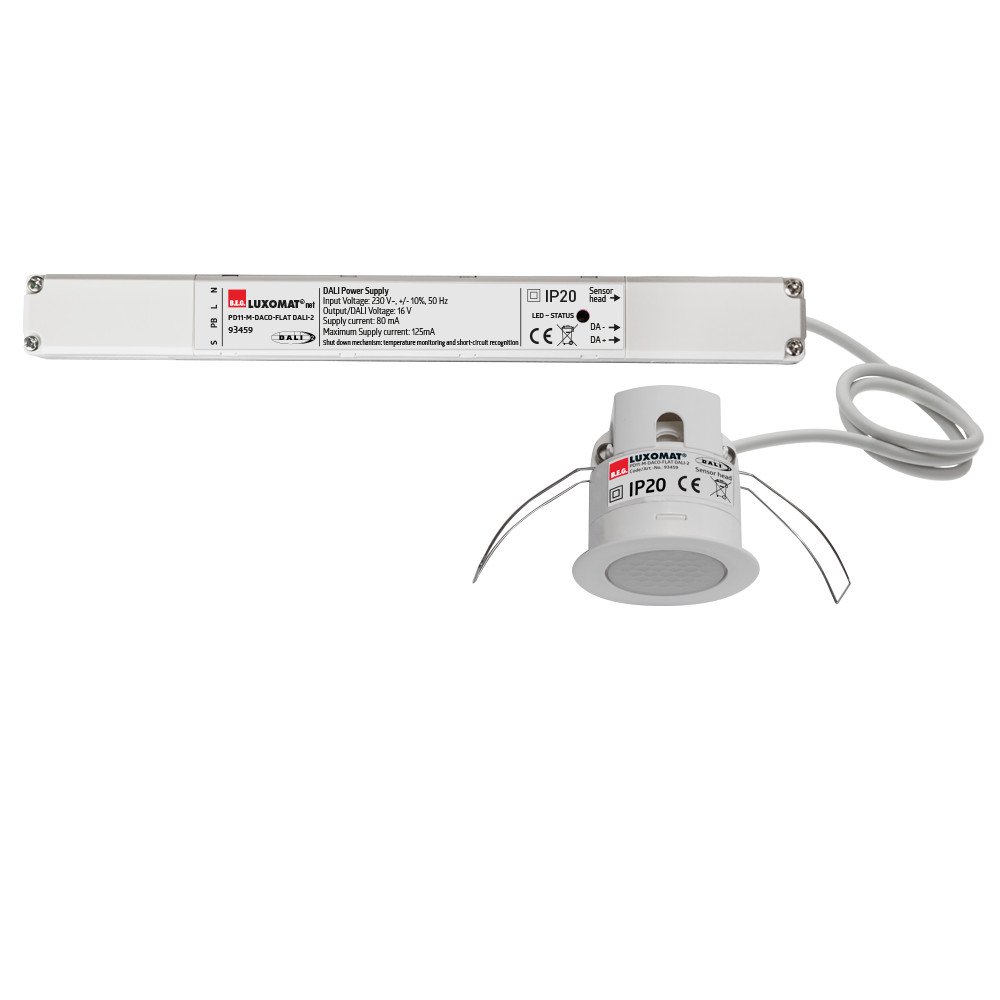

Image is for illustrative purposes only

B.E.G. 93459 (PD11-M-DACO-FLAT DALI-2) Occupancy Detector 360° FC White IP20 DALI 9m 1 Channel

Part: 93459
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Occupancy detector with integrated DALI application controller for energy-efficient lighting control
  • DALI-2 certified product
  • Integrated DALI power supply
  • DALI interface for controlling digital, dimmable ECGs in broadcast mode
  • Manual switching or dimming via conventional pushbuttons
  • Bidirectional IR communication enables fast integration into the project management function of the B.E.G. One app
  • Complete range of functions can only be activated using the BLE-IR-Adapter and a compatible Smartphone or Tablet (Android, iOS).
  • Semi-automatic, full automatic, presence-independent or light-independent mode adjustable
  • Adjustable regulation dynamics (minimum and maximum values)
  • Adjustable speed and delay of the regulation

Mounting method :Other
Colour :White
Model :Presence detector
Height :48mm
Surface protection :Untreated
Creep-under protection :Yes
Number of channels :1
Diameter :43mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Max. reach frontally :3M
Max. reach sideways :4.5M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :No
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :9M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :Yes
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :30 Min
Voltage supply over bus :No
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :Yes
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
