B.E.G. 93455

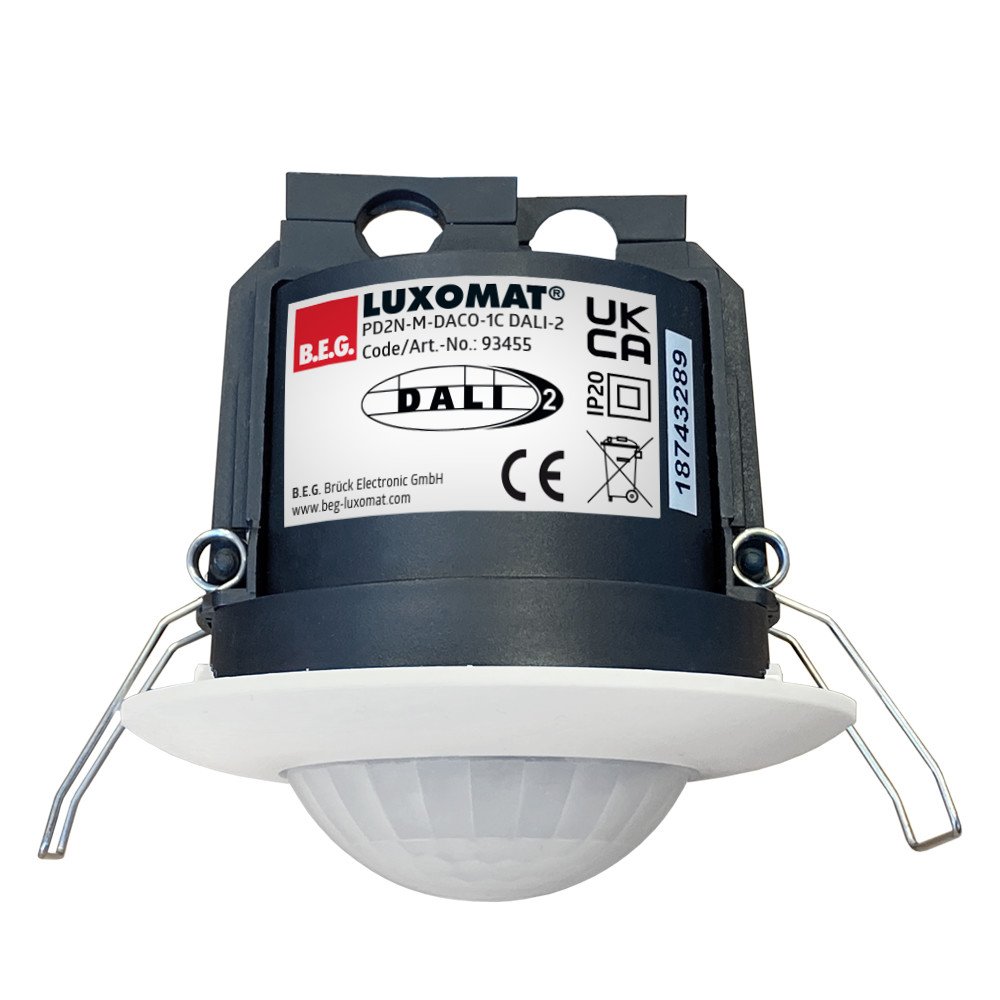

Image is for illustrative purposes only

B.E.G. 93455 (PD2N-M-DACO-1C DALI-2) Occupancy Detector1C 360° FC White IP20 DALI 10m 2 Channel

Part: 93455
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Occupancy detector with integrated DALI application controller for energy-efficient lighting control
  • DALI-2 certified product
  • Integrated DALI power supply
  • DALI interface for controlling digital, dimmable ECGs in broadcast mode
  • Manual switching or dimming via conventional pushbuttons
  • Bidirectional IR communication enables fast integration into the project management function of the B.E.G. One app
  • Complete range of functions can only be activated using the BLE-IR-Adapter and a compatible Smartphone or Tablet (Android, iOS).
  • Semi-automatic, full automatic, presence-independent or light-independent mode adjustable
  • Powerful switching relay for different operating modes, e.g. Cut-off function for DALI ballasts, HVAC, blackboard illumination.
  • Adjustable regulation dynamics (minimum and maximum values)

Mounting method :Other
Colour :White
Model :Presence detector
Height :85mm
Surface protection :Untreated
Creep-under protection :Yes
Number of channels :2
Diameter :84mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Material qualifier :Other
Switching power :2300W
Max. reach frontally :3M
Max. reach sideways :5M
Bus system KNX :No
Bus system radio frequent :No
Bus system Powernet :No
Bus connection included :No
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Bus system LON :No
Diameter reach on floor :10M
Auxiliary input :Yes
RAL-number (similar) :9010
Teach-function for response value luminosity :Yes
Operation mode switch :Yes
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Min. switch-on time :60 s
Max. duty cycle :30 Min
Voltage supply over bus :No
Response value luminosity adjustable :Yes
Switch-off delay self-learning :No
Optimum mounting height :2.5M
Bus system KNX radio :No
Radio frequent bidirectional :No
DALI-2 certified :Yes
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
