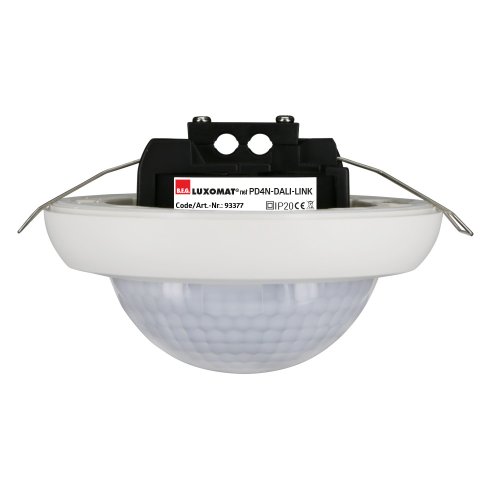

B.E.G. 93377 (PD4N-DALI-LINK) Occupancy Detector 360° White IP20 DALI-LINK 24m

Part: 93377
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Wide motion detection range DALI multisensor
  • Powered via DALI bus
  • Seemless integration in DALI lighting control system B.E.G. LUXOMAT(R)net DALI-LINK as modular multimaster option
  • Detection area can be extended thanks to master-slave-mode
  • Mixed light measurement with internal and external light sensor
  • Semi-automatic, full-automatic or twilight switch mode
  • Integrated daylight harvesting circuit (or switch output)
  • Guided Light, Soft-Start PLUS, Orientation light PLUS
  • Works out-of-the box for easy installation check
  • Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-LINK

Height :68mm
Surface protection :Untreated
Diameter :106mm
Suitable for wall mounting :No
Staircase monitoring :Yes
Max. reach frontally :4M
Max. reach sideways :12M
Material :Plastic
Length of connection cable :0mm
Other bus systems :Other
Diameter reach on floor :24M
RAL-number (similar) :9010
Teach-function for response value luminosity :No
Operation mode switch :No
With connection cable :No
Transparent :No
Animal zone :No
Surface finish :Matt
Voltage supply over bus :Yes
Response value luminosity adjustable :No
Optimum mounting height :2.5M
DALI-2 certified :No
Background monitoring :No
With acoustic sensor :No
Suitable for ceiling mounting :Yes
